Honda PC50 1968 1969

View the Honda PC50 (1968 - 1969) technical drawings and exploded views for exact part numbers and assembly layout.

Specifications & features ▾

This first generation PC50 is instantly recognizable by its leading-link front suspension fork and overhead camshaft (OHC) engine, paired with an automatic centrifugal clutch and bicycle pedals. Using these parts diagrams, you can easily find all original spares, replacement components, and rebuild kits per assembly group.

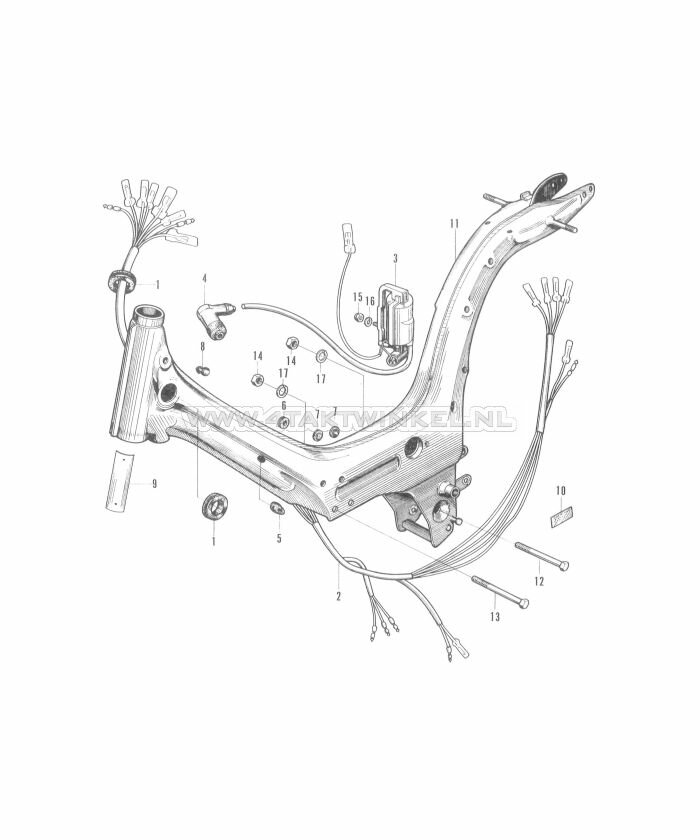

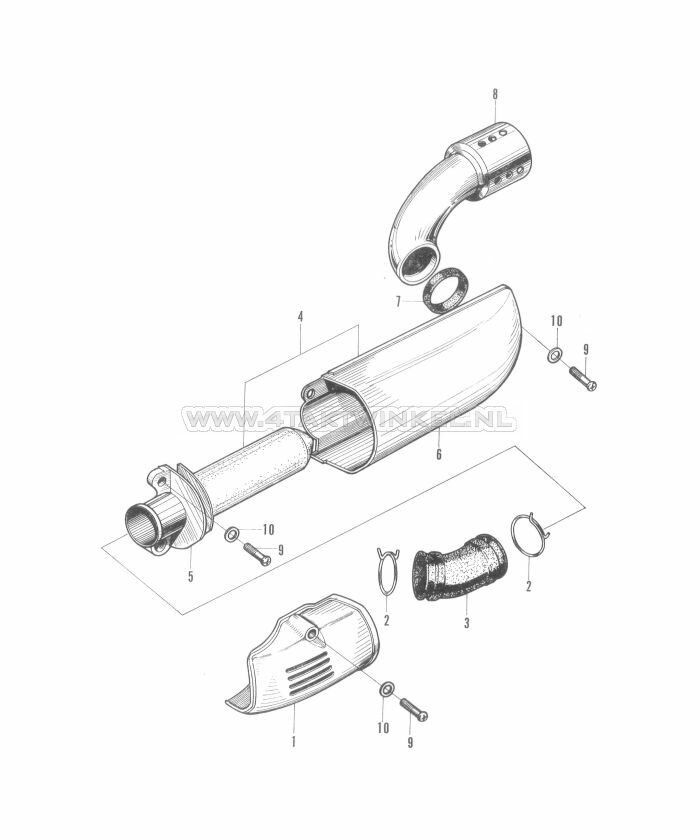

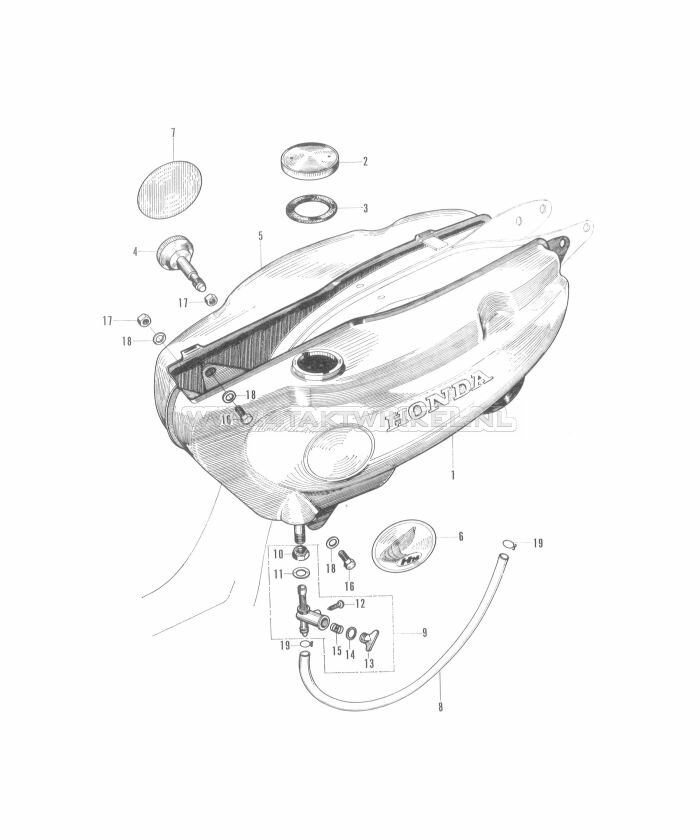

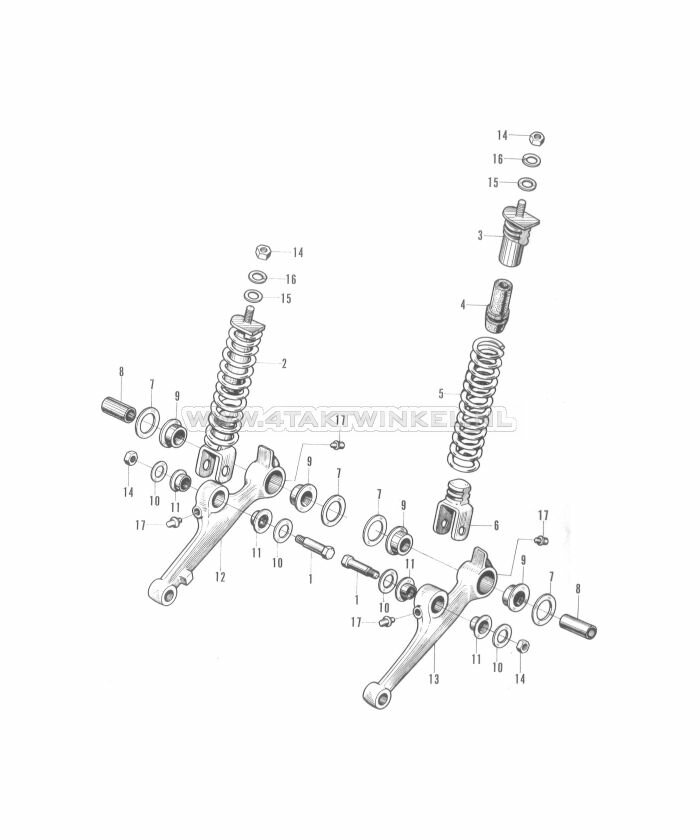

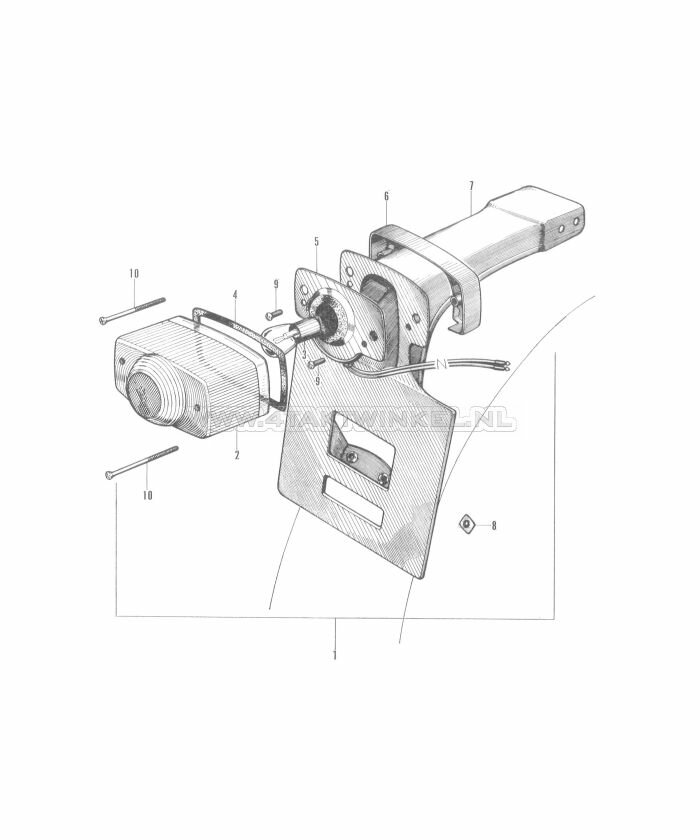

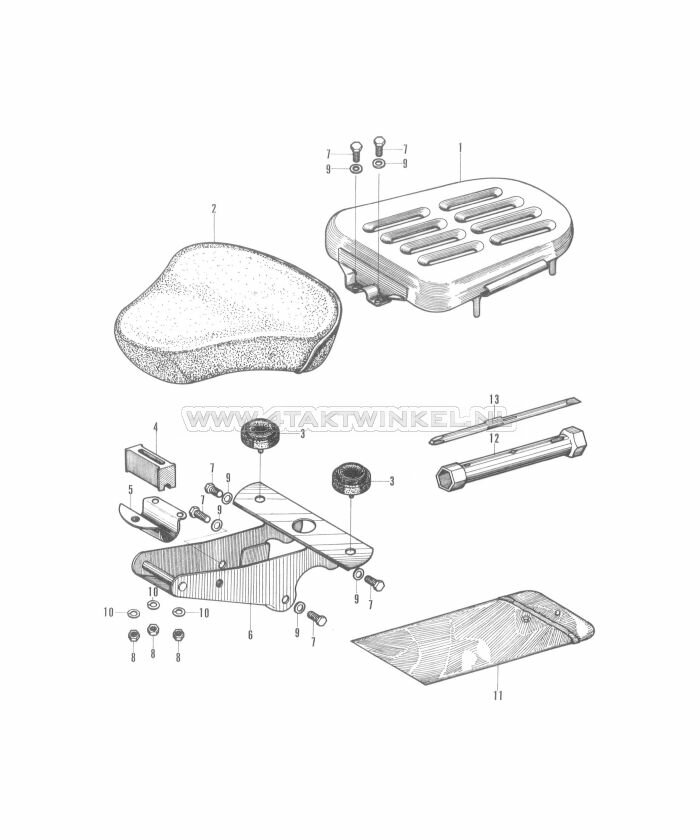

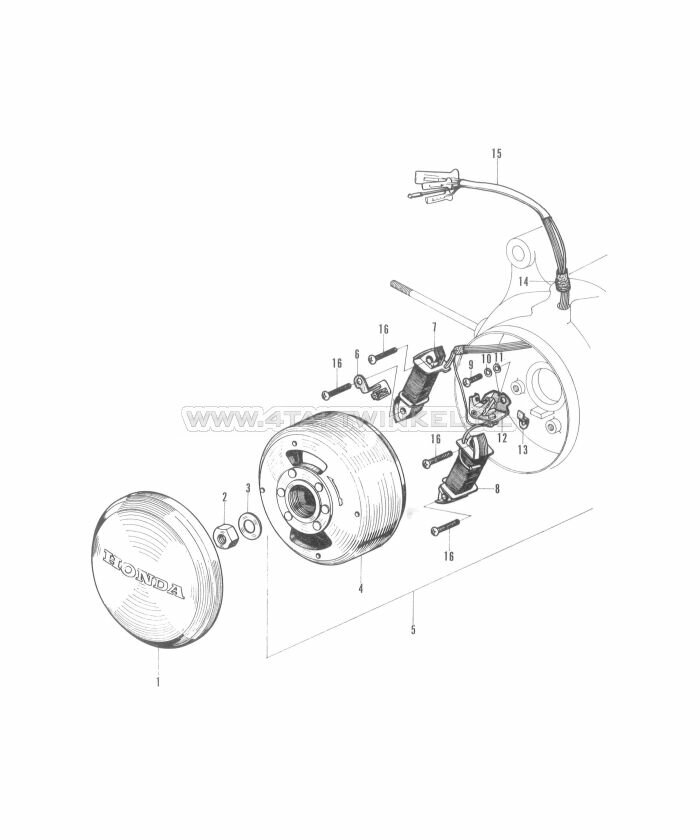

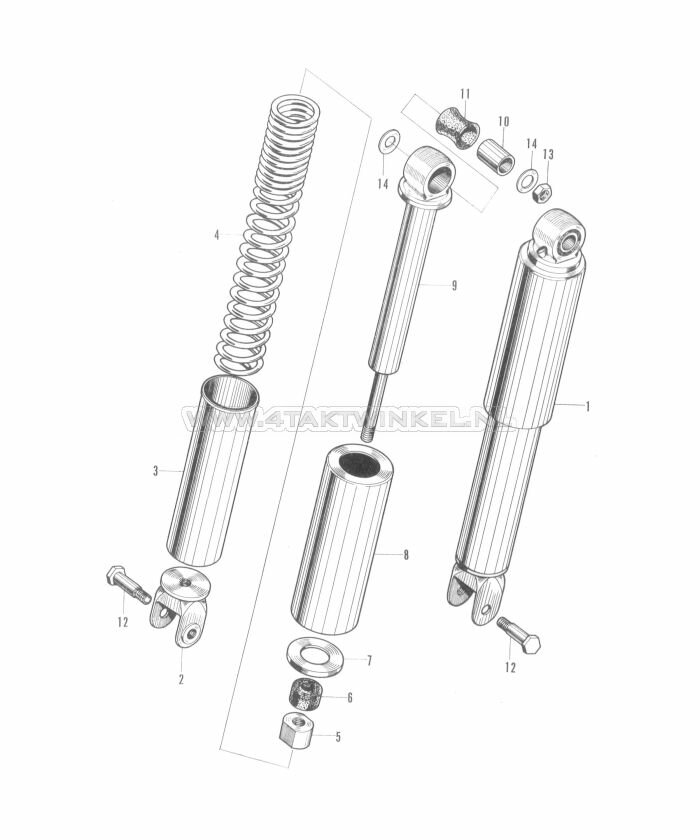

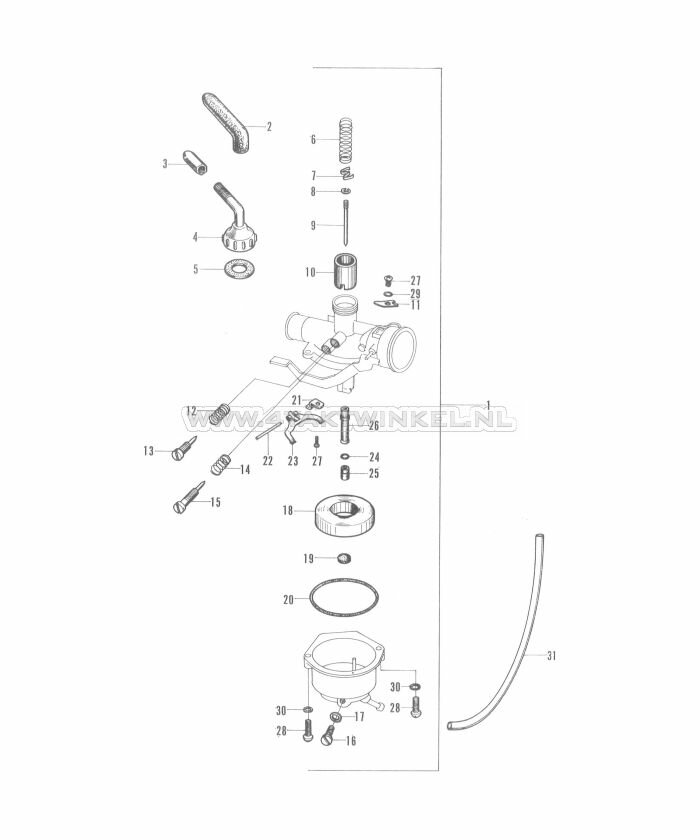

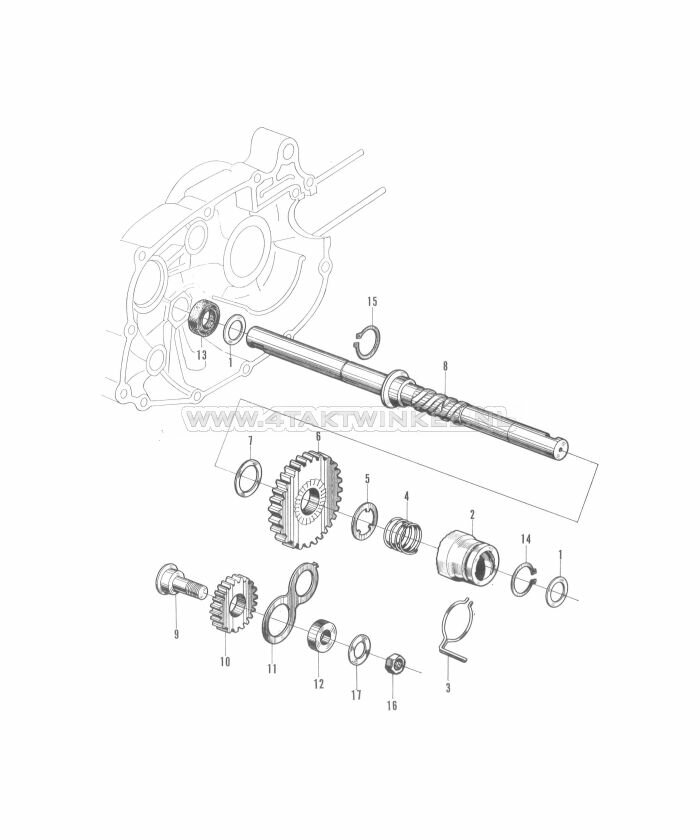

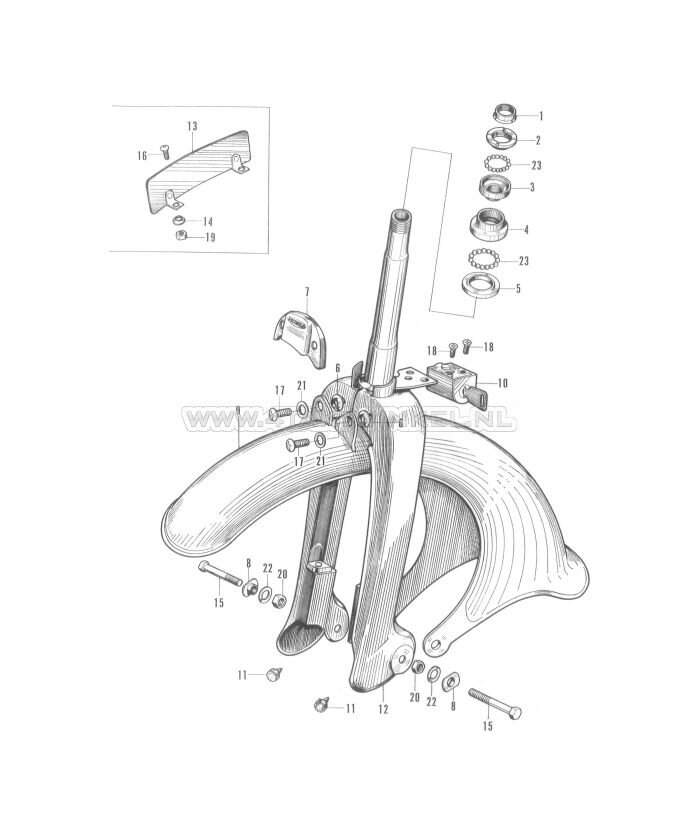

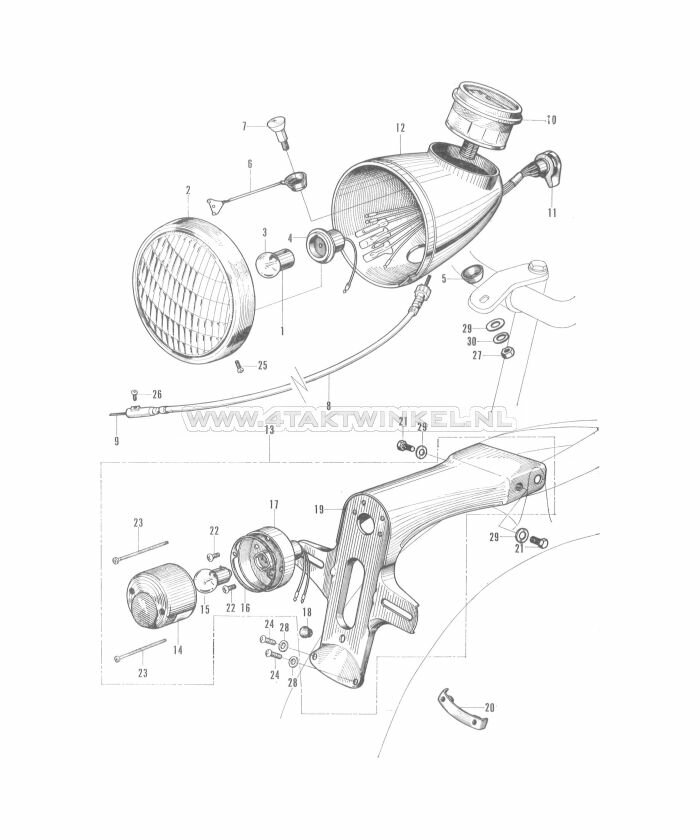

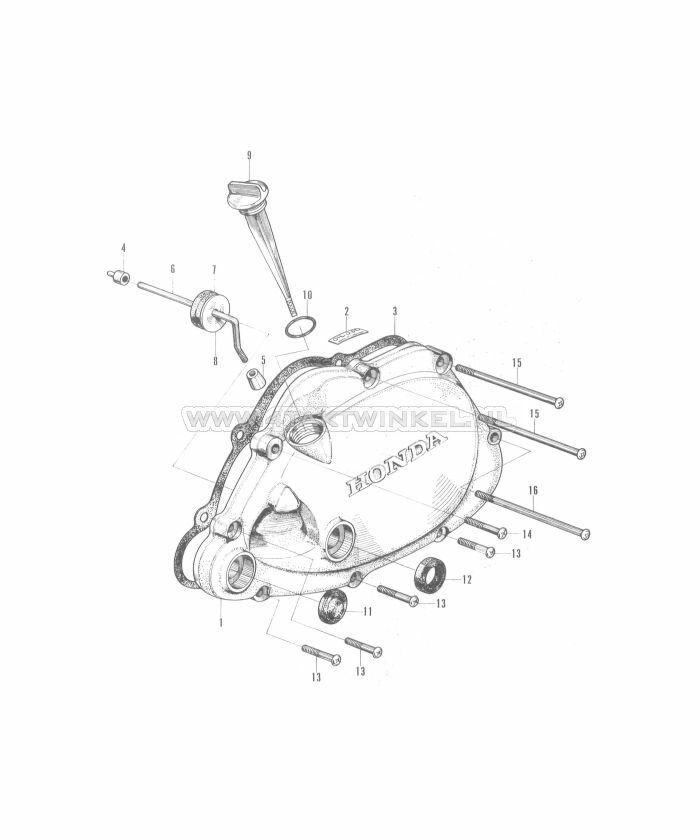

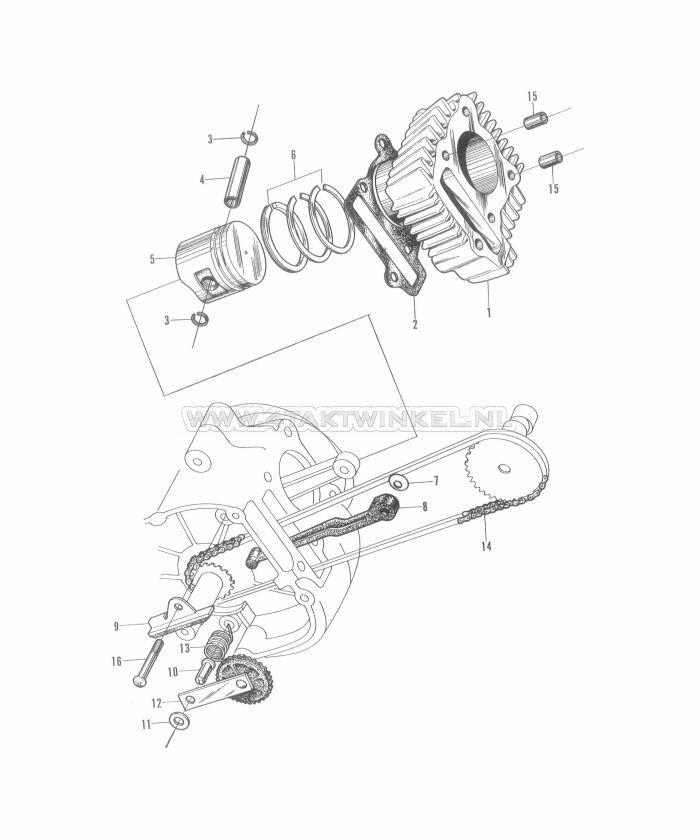

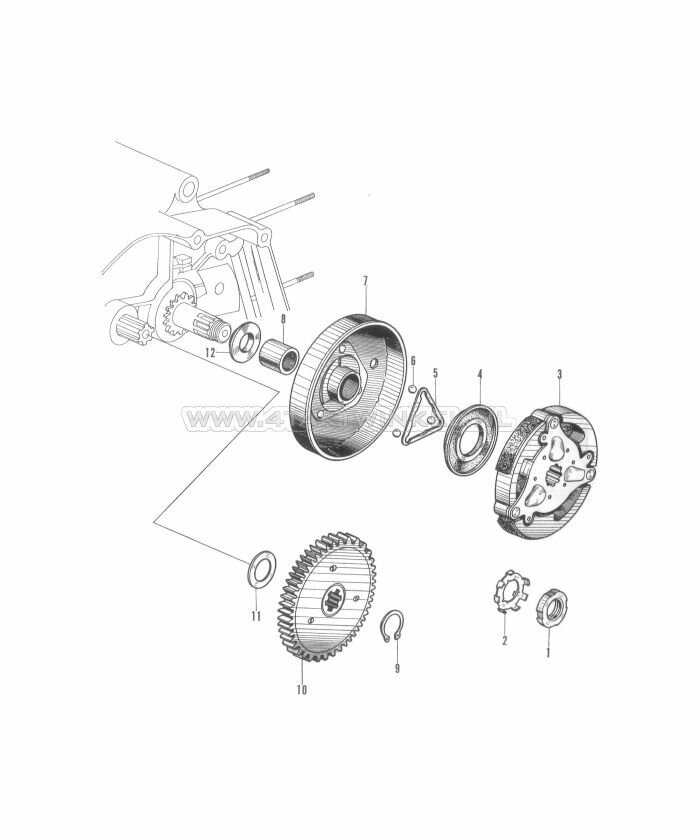

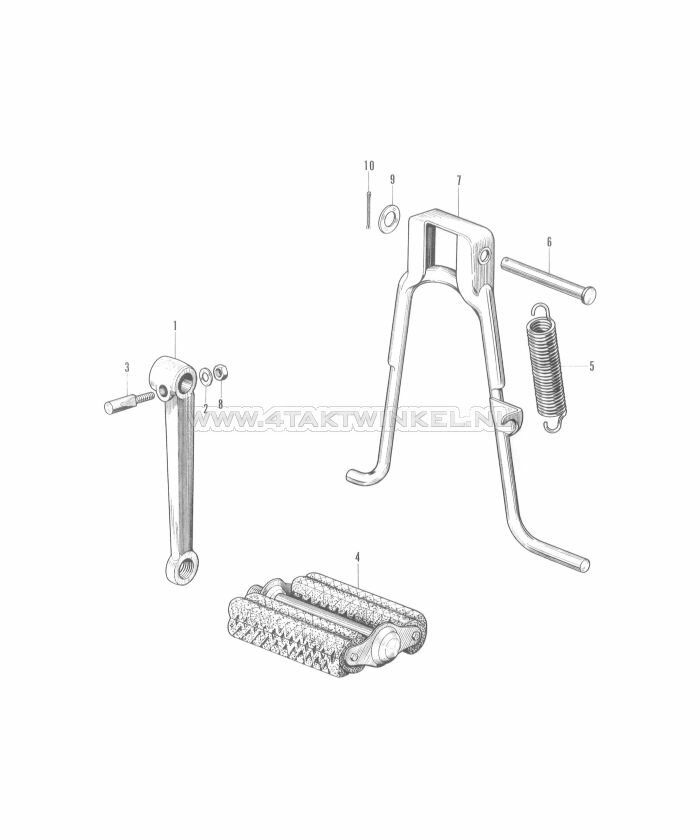

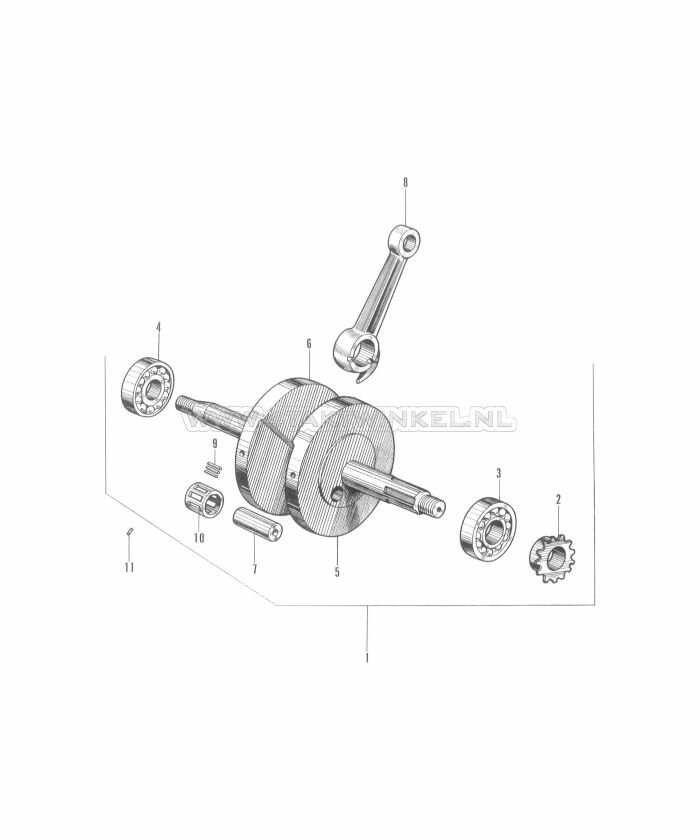

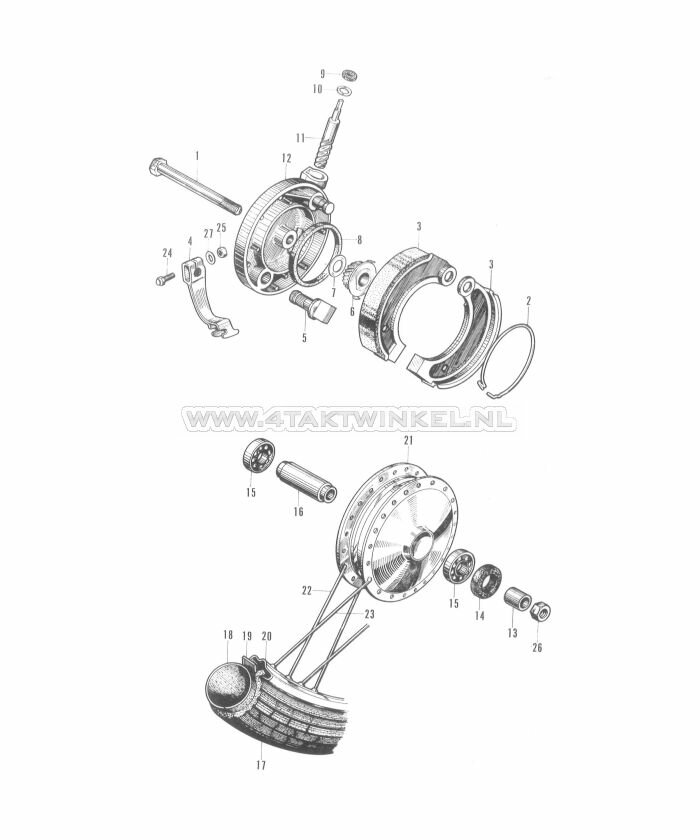

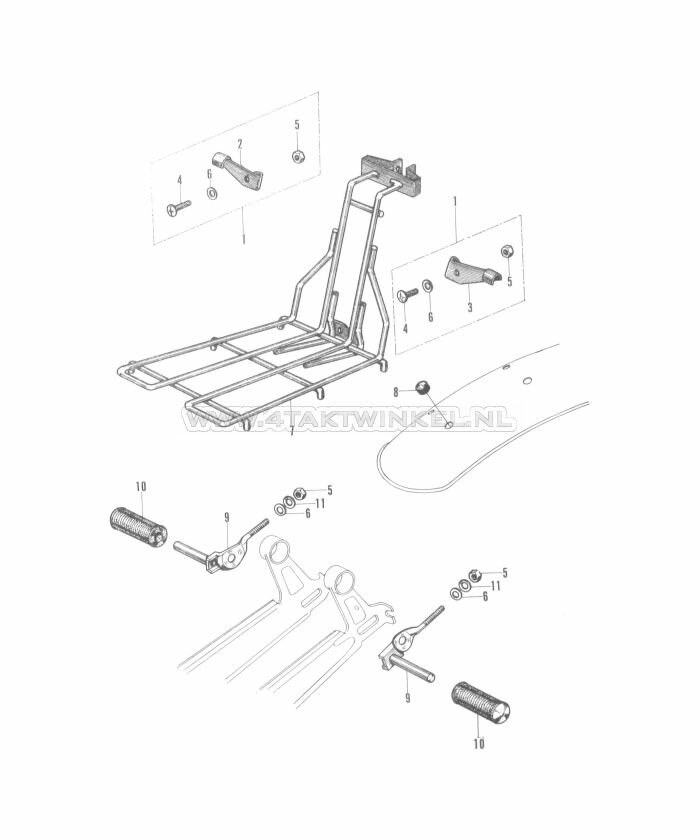

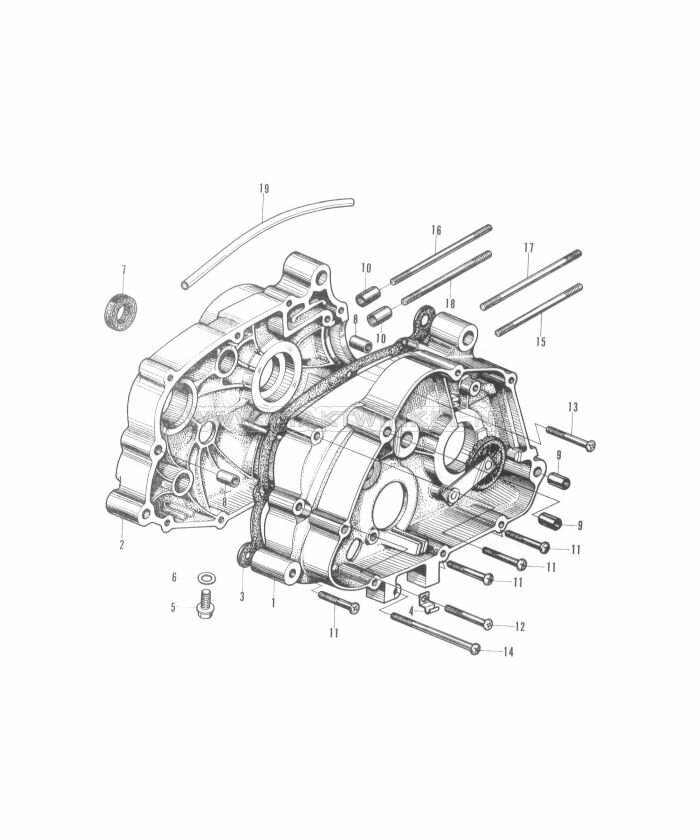

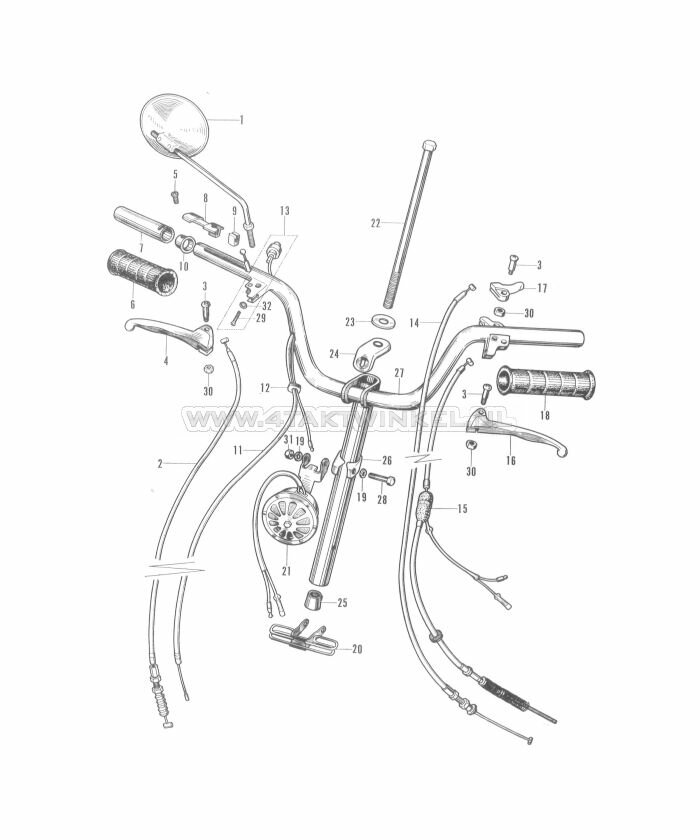

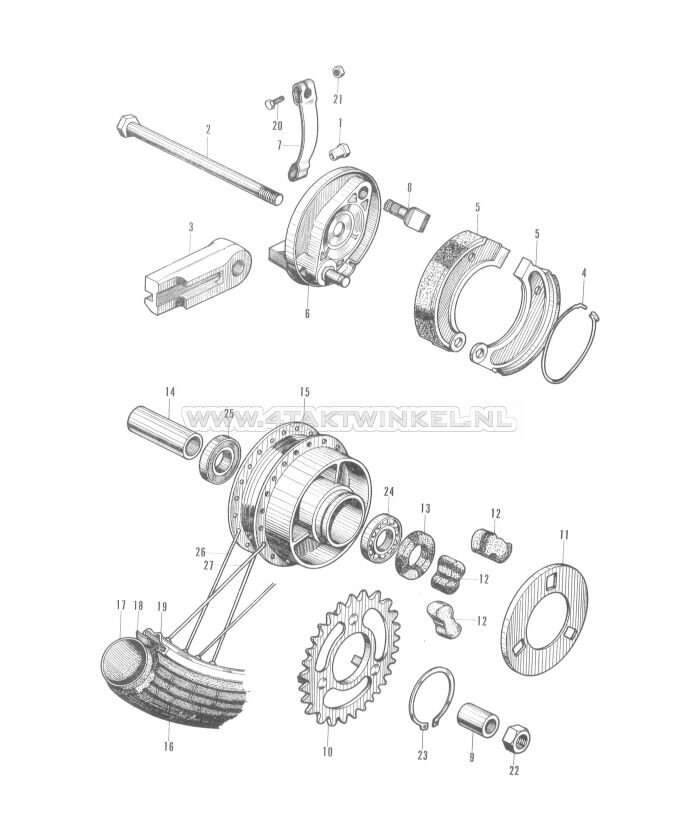

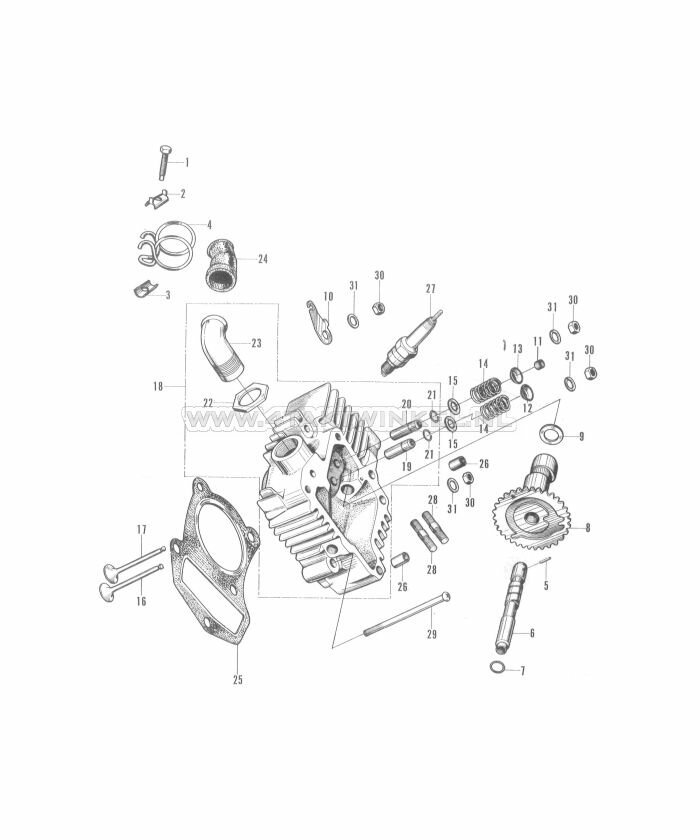

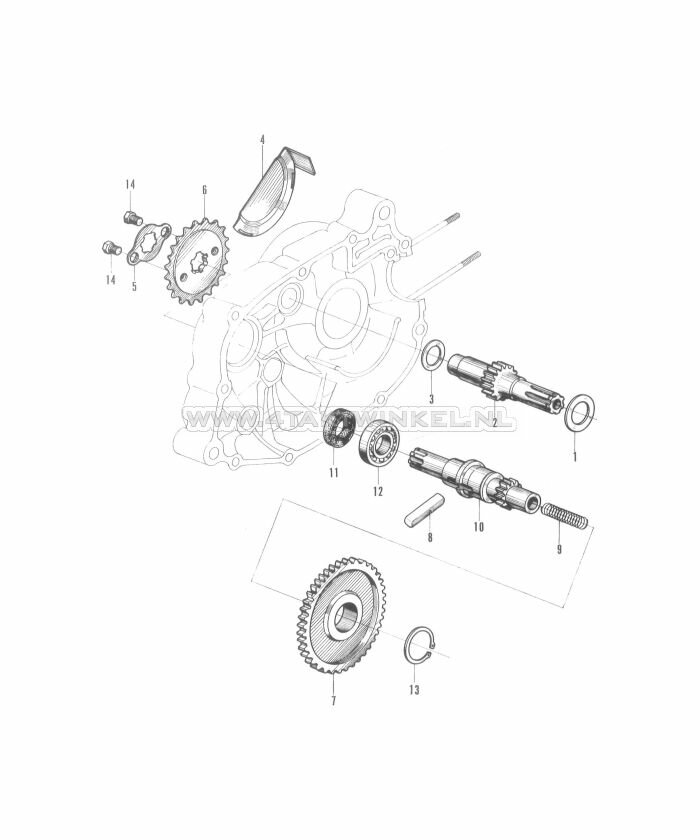

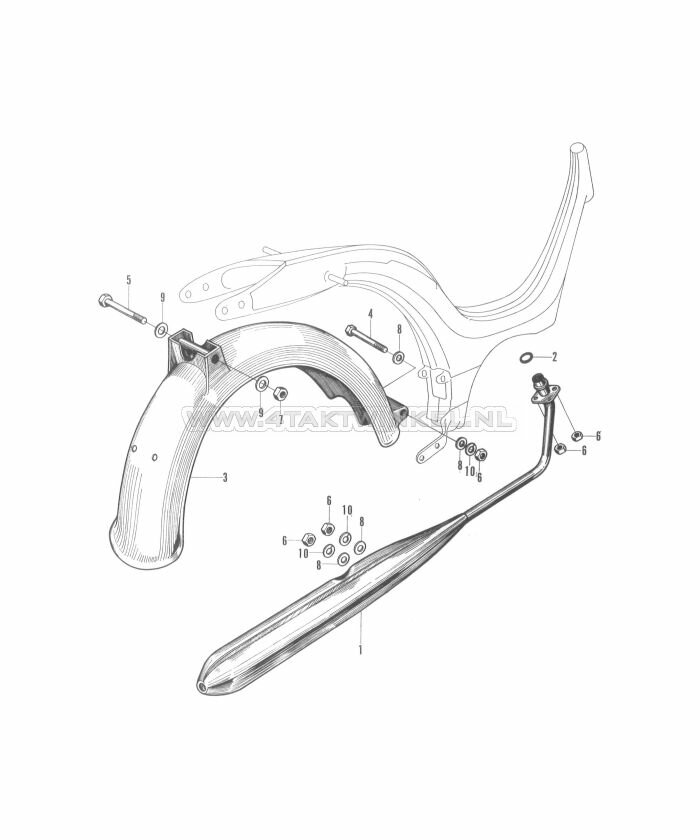

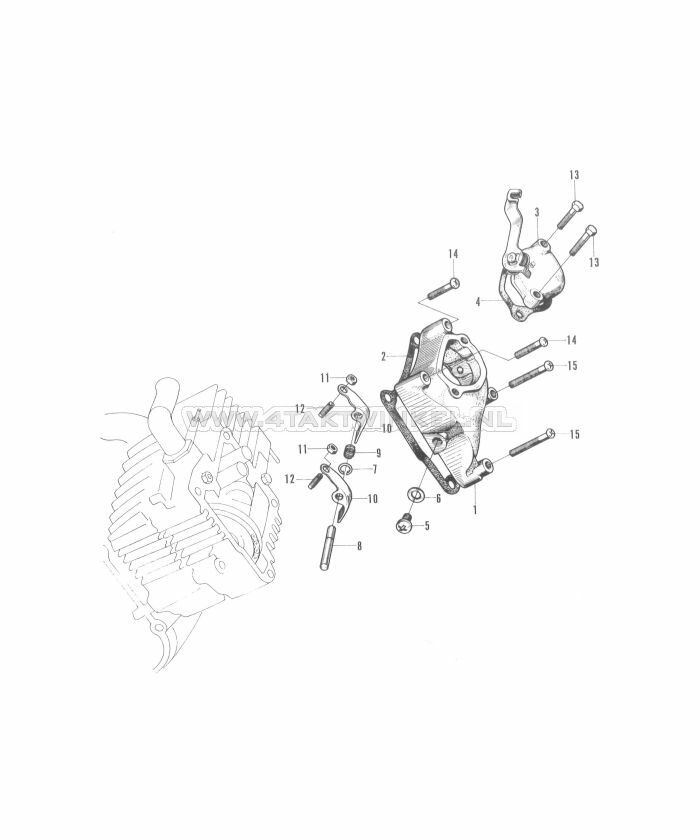

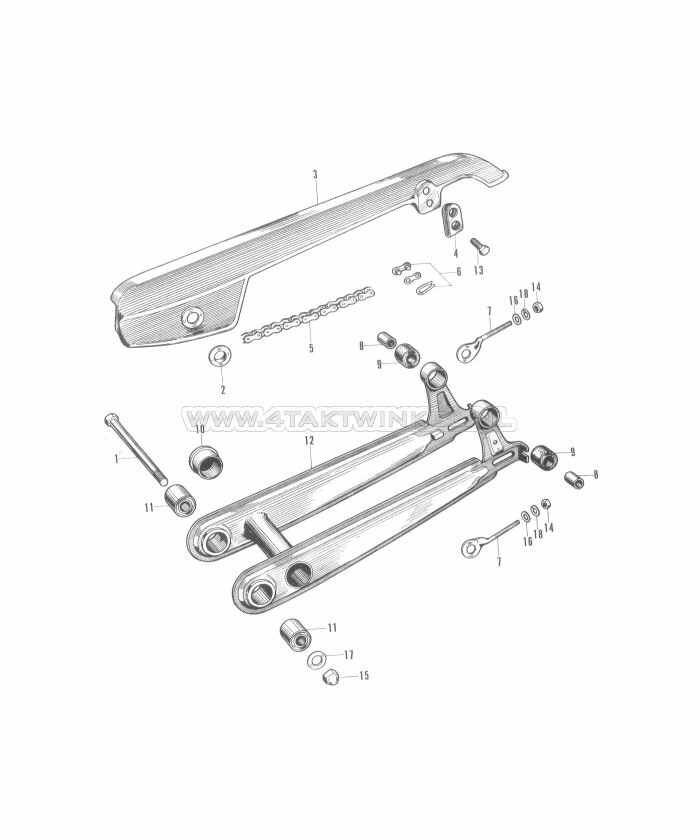

Click on an exploded view drawing to view all parts within that assembly group:

Looking for popular items and accessories? Visit the main overview for Honda PC50 parts ➔

Use these Honda PC50 (1968 - 1969) technical drawings and exploded views to easily identify assembly sequences and OEM part numbers. This first generation PC50 is easily distinguished by its leading-link front suspension and 49cc four-stroke engine with chain-driven overhead camshaft (OHC). Using these parts lists, you can quickly find all original spares, replacement parts, mounting hardware, and overhaul components per group.

Click on an exploded view drawing to view all parts within that assembly group.

Looking for parts for another Honda PC50 variant, or would you like to browse our curated range of popular items and accessories? Head over to the central directory for Honda PC50 parts.

First Generation OHC: Honda PC50 (1968 - 1969)

In May 1968, Honda introduced the PC50 as the direct successor to the P50. While the engine was positioned inside the rear wheel on its predecessor, the PC50 shifted the four-stroke engine to a conventional central location beneath the pressed-steel frame. This resulted in significantly better handling, improved weight distribution, and much simpler service access.

The 1968 and 1969 model years are defined by the distinctive leading-link front suspension fork and the 49cc OHC engine architecture with a chain-driven overhead camshaft. The machine retained the accessible step-through chassis, automatic centrifugal clutch, and bicycle pedals required for starting and pedaling. The plastic side covers and rounded under-seat fuel tank gave this early PC50 its timeless design.

When overhauling the unique leading-link fork, OHC cylinder head, cam chain assembly, or the early ignition and carburetor systems, dependable factory documentation is indispensable. These exploded views illustrate every detail and corresponding OEM part numbers to keep your classic OHC PC50 authentic down to the last bolt.
