Honda Super Cub C50 K1

View the Honda Super Cub C50 K1 technical drawings and exploded views for exact part numbers and assembly details.

Specifications & features ▾

The classic Honda C50 K1 is instantly recognizable by its fuel tank recessed into the frame, the crankcases with cooling fins, the specific leg shield, the raised handlebars with dedicated speedometer, and the 6-volt points ignition. These parts lists make it easy to find all genuine parts, replacements, hardware, and rebuild items by assembly group.

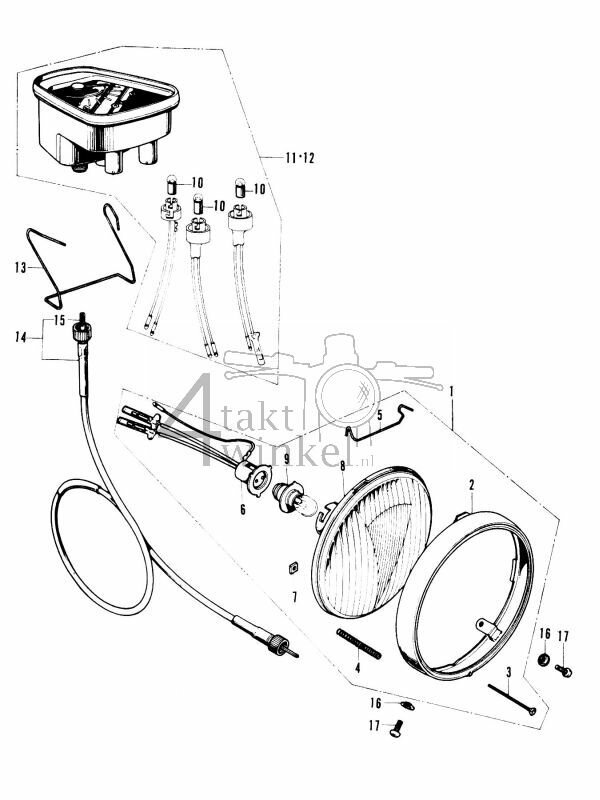

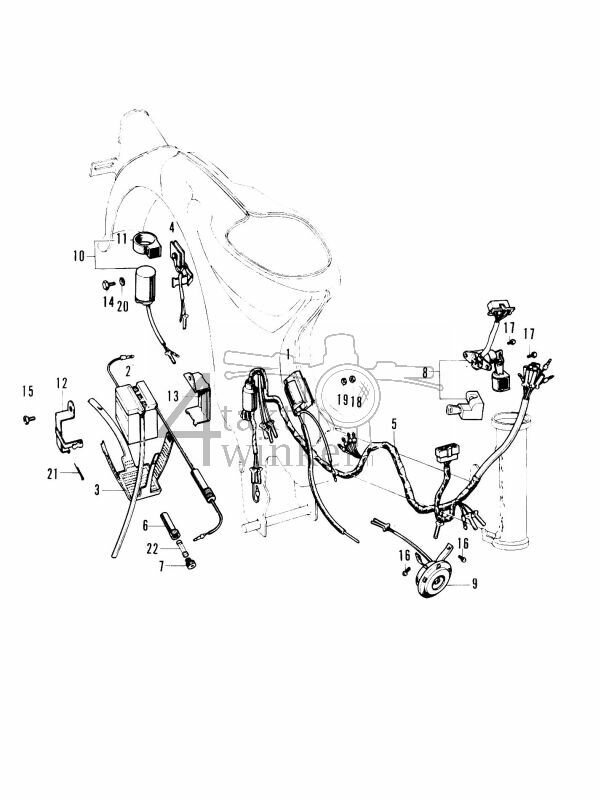

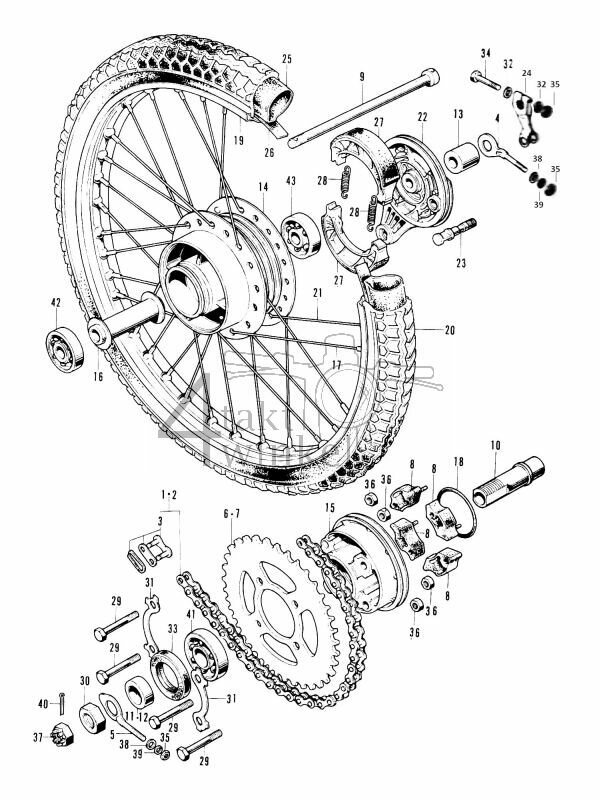

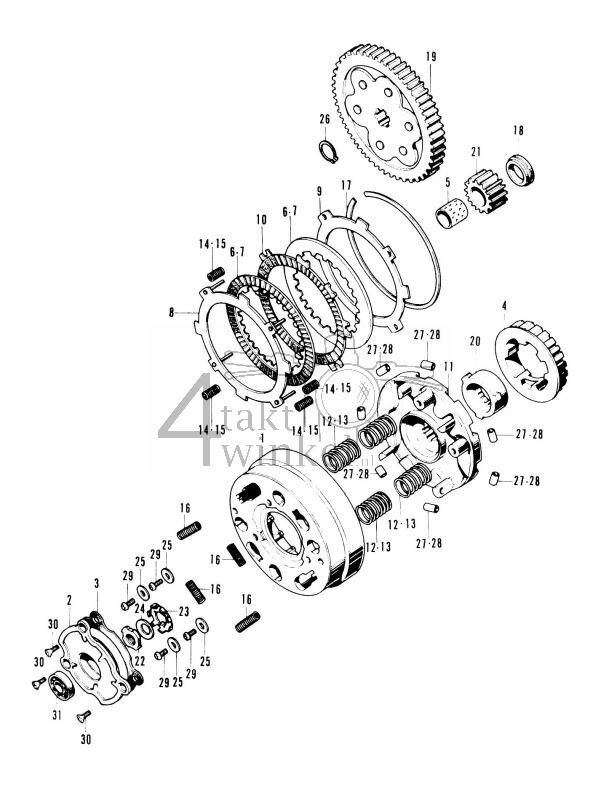

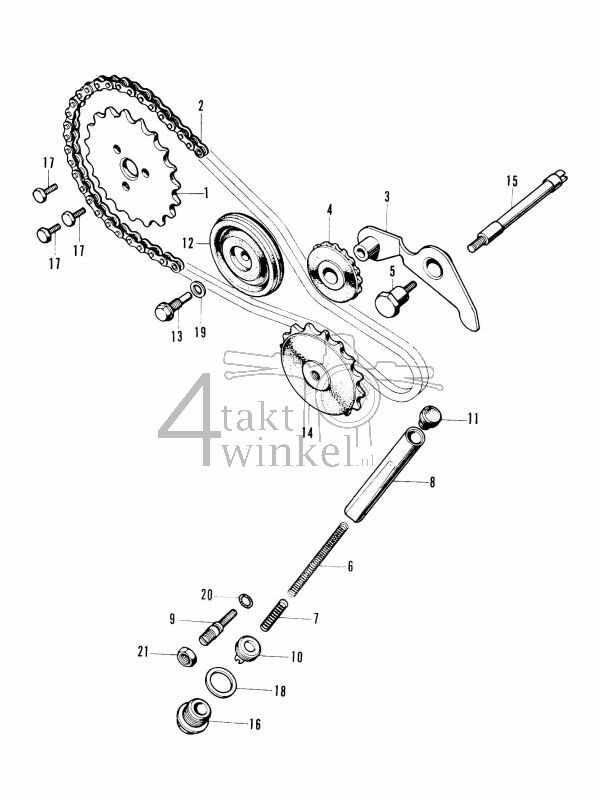

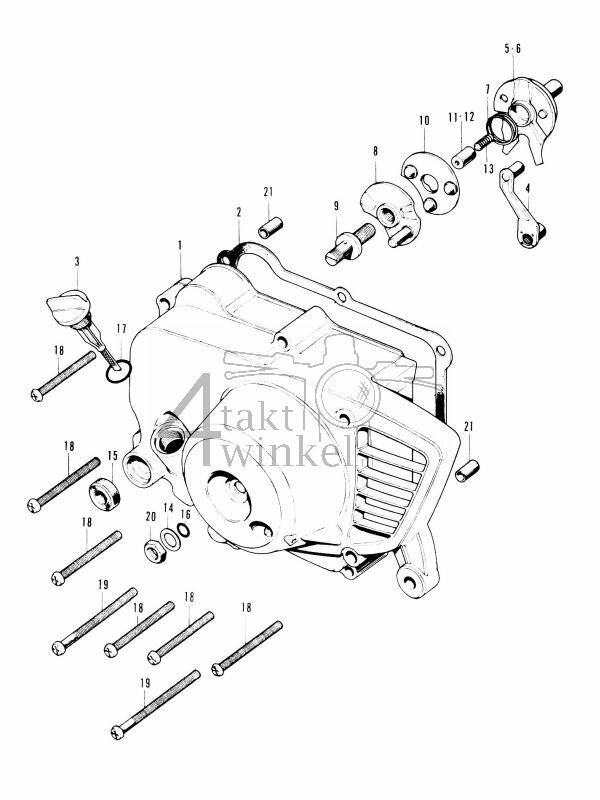

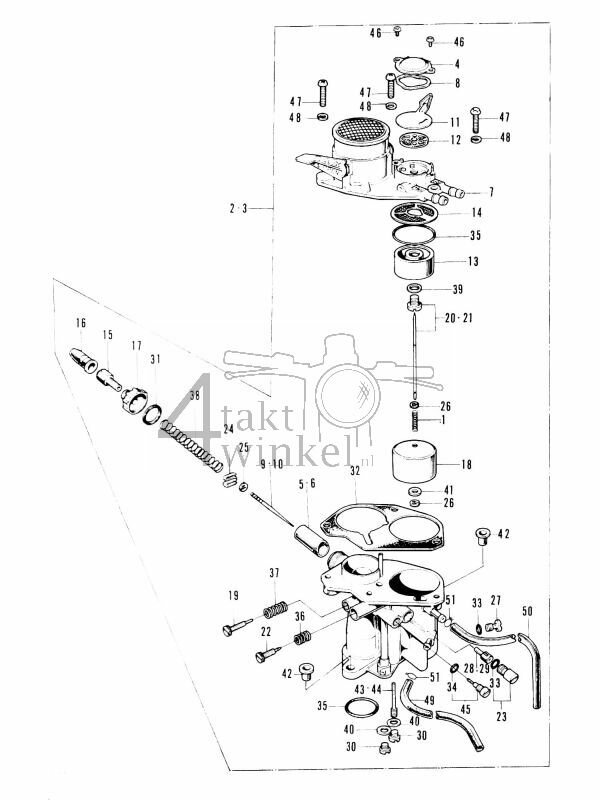

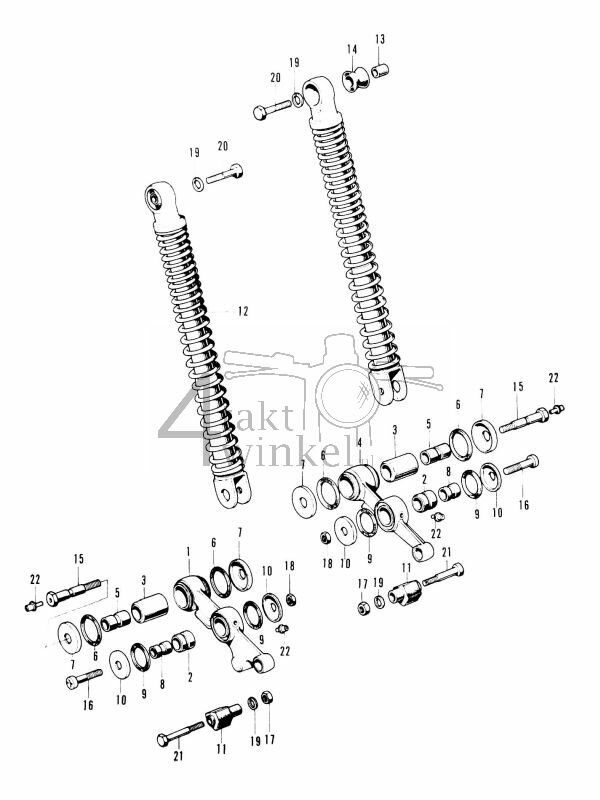

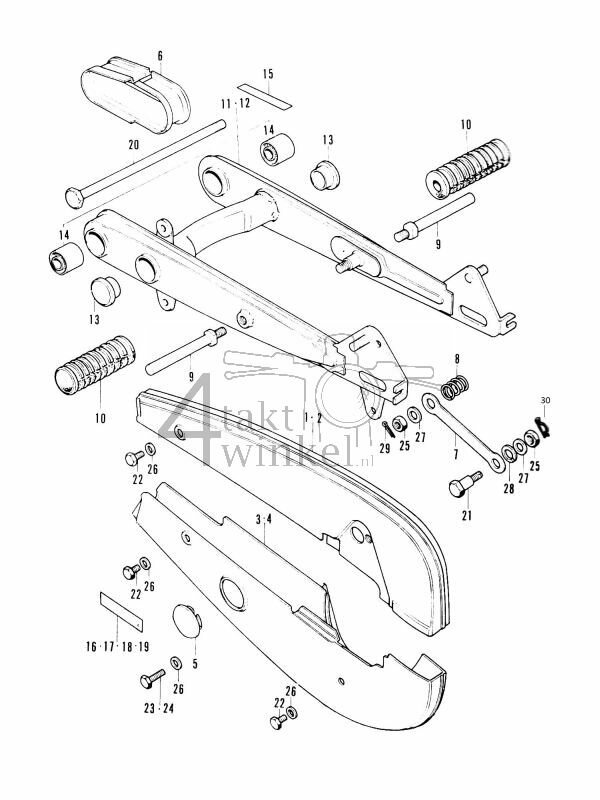

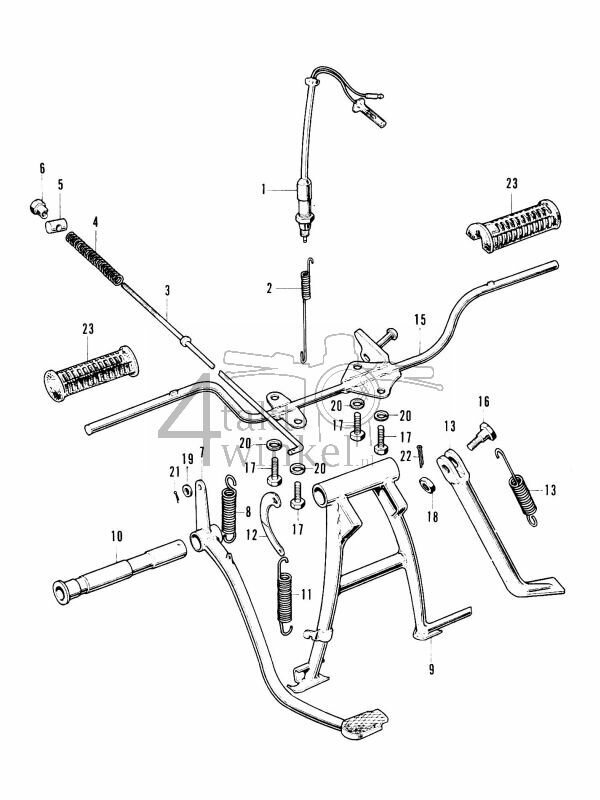

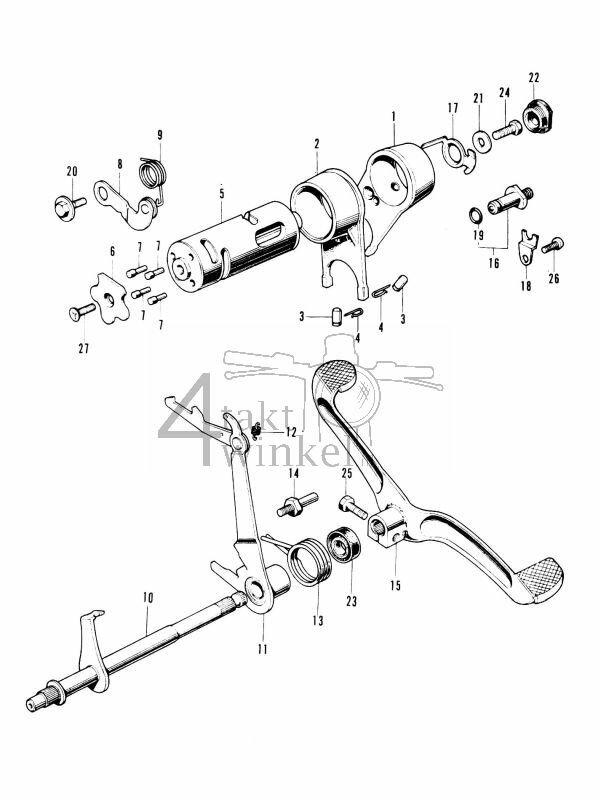

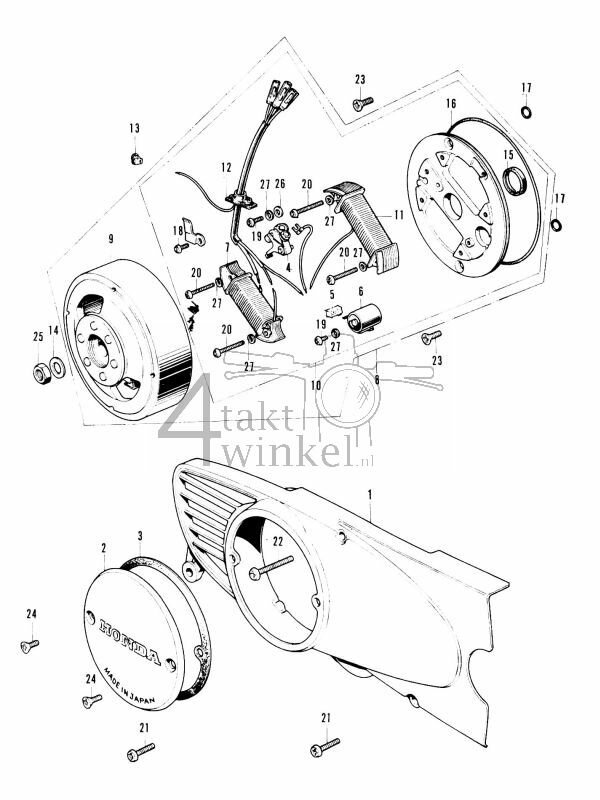

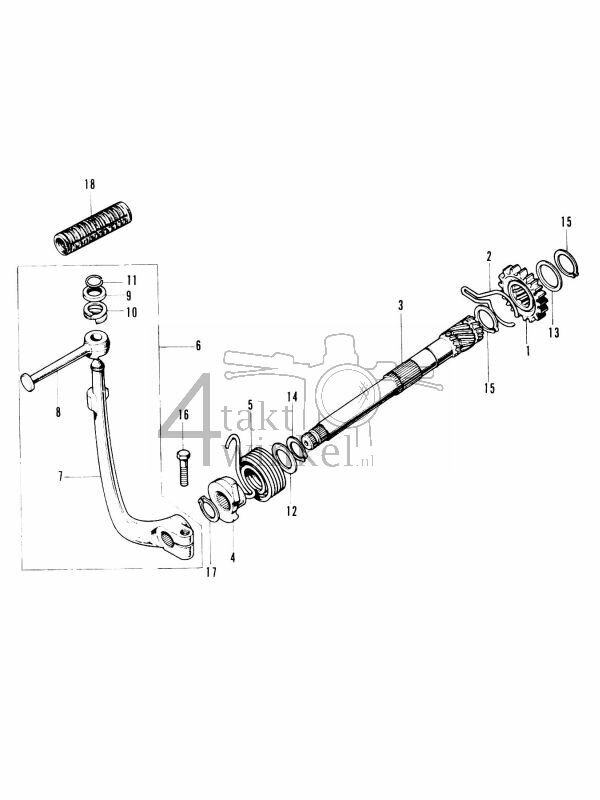

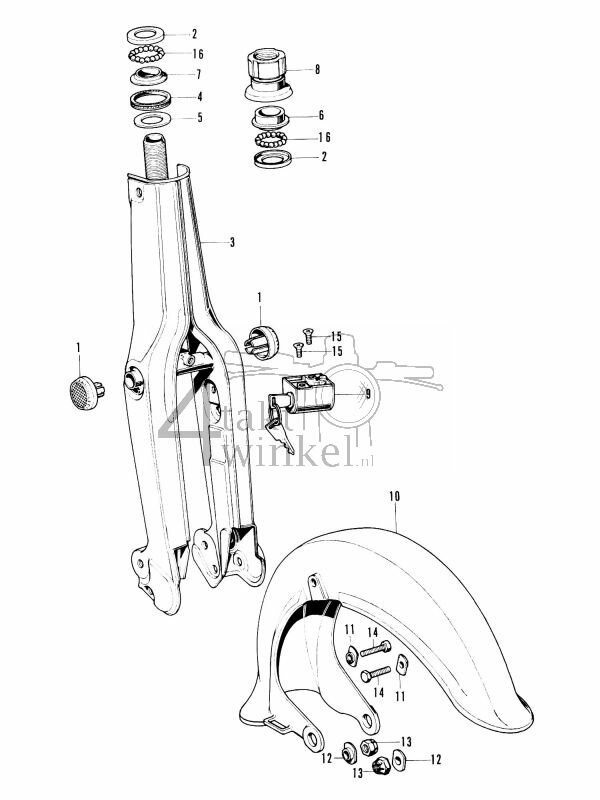

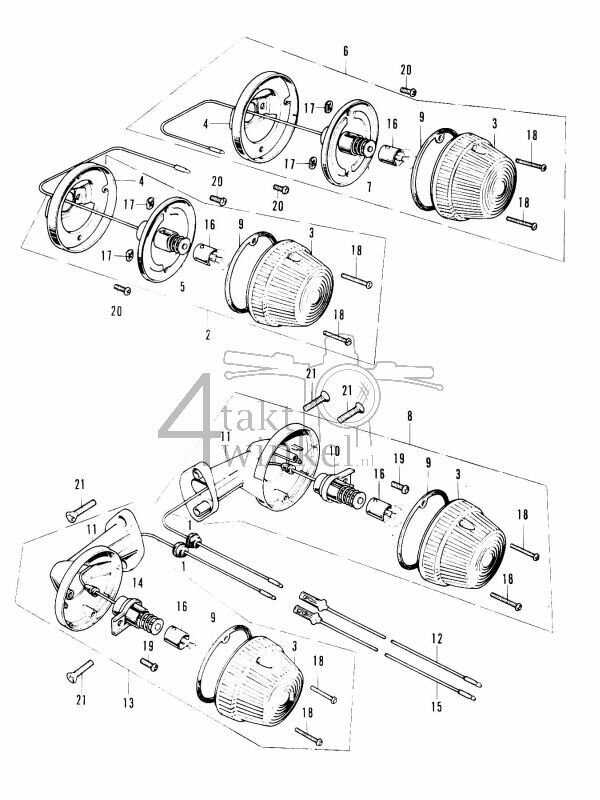

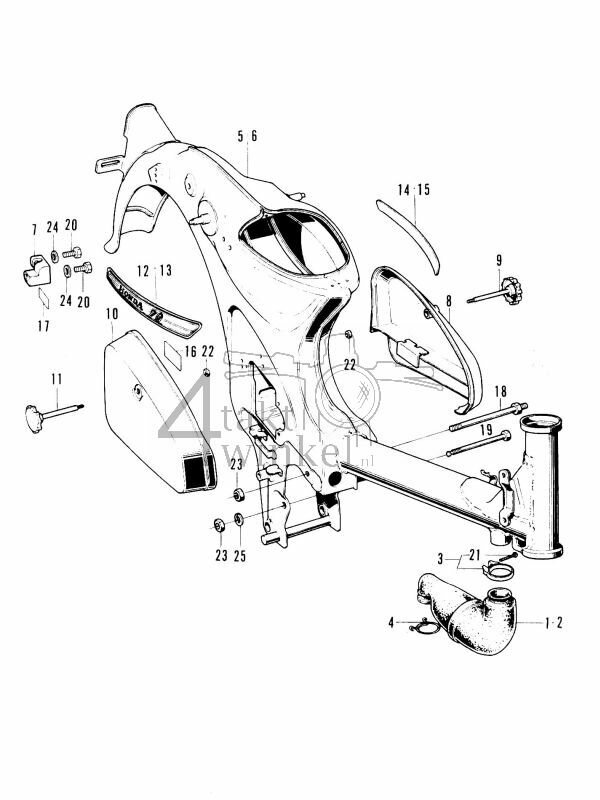

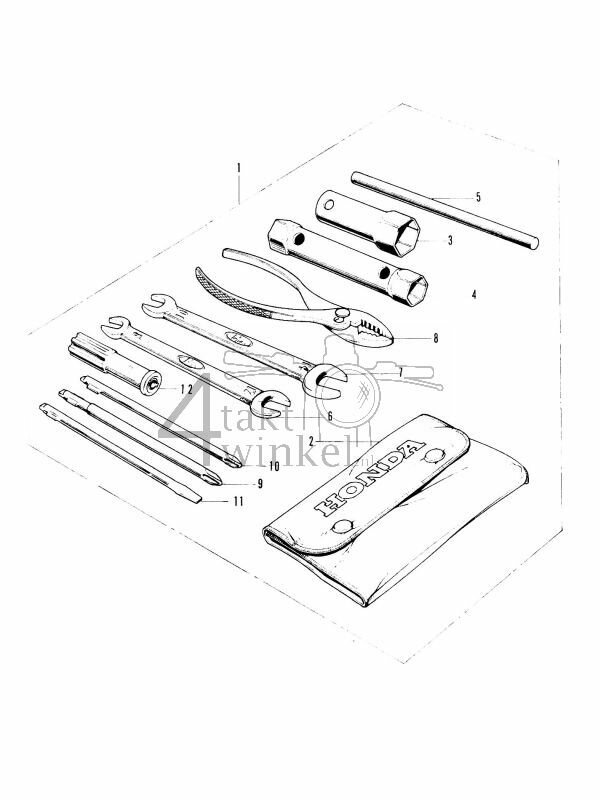

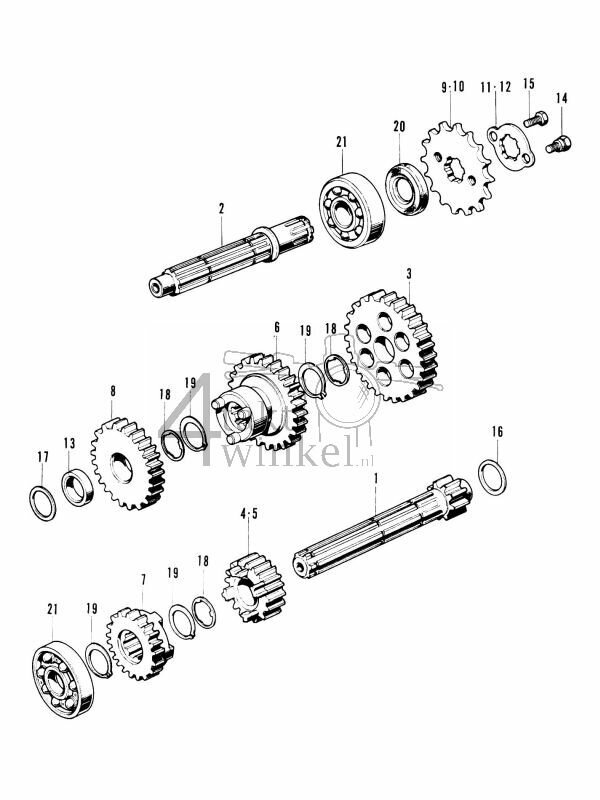

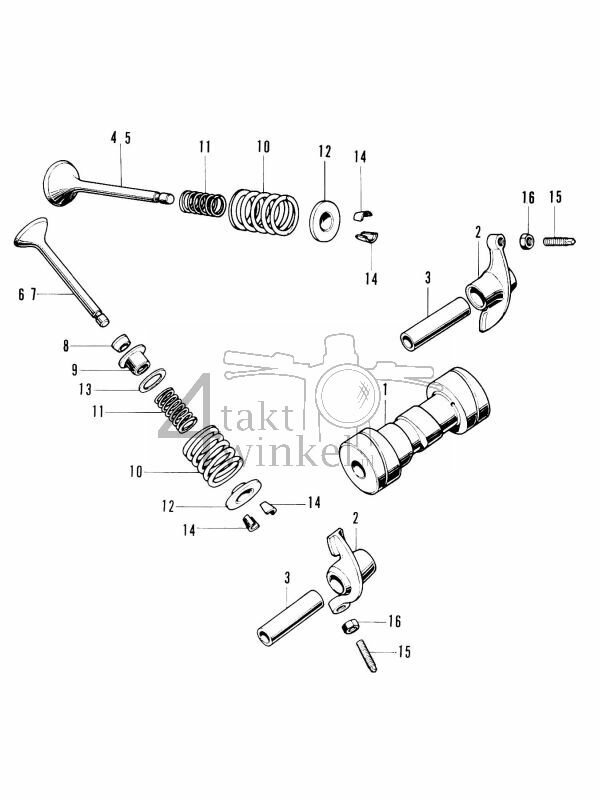

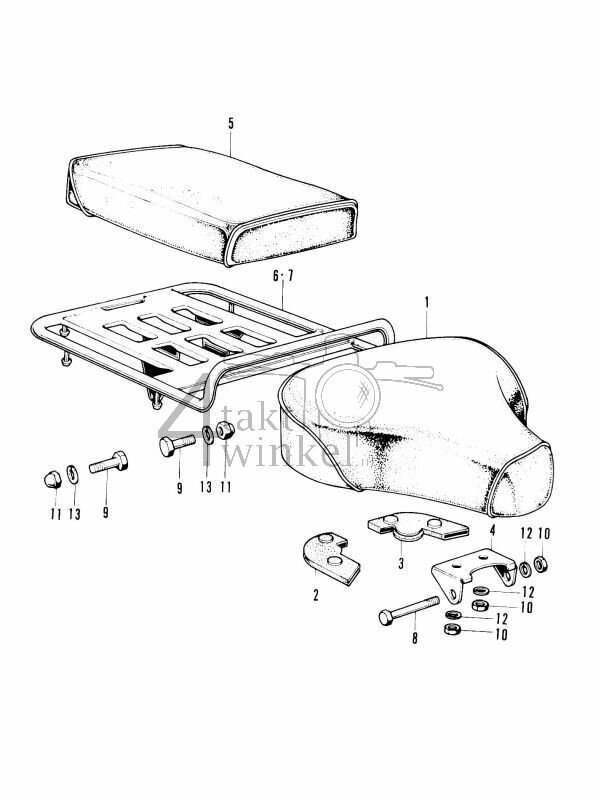

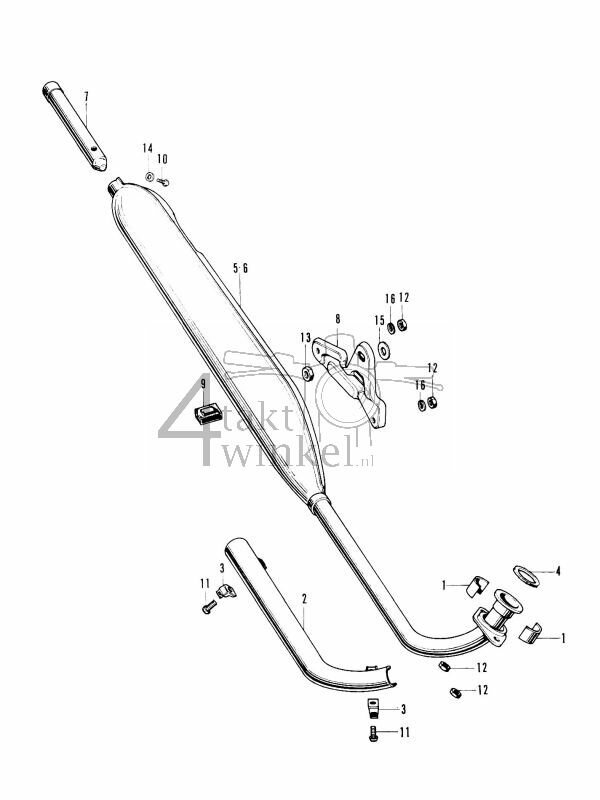

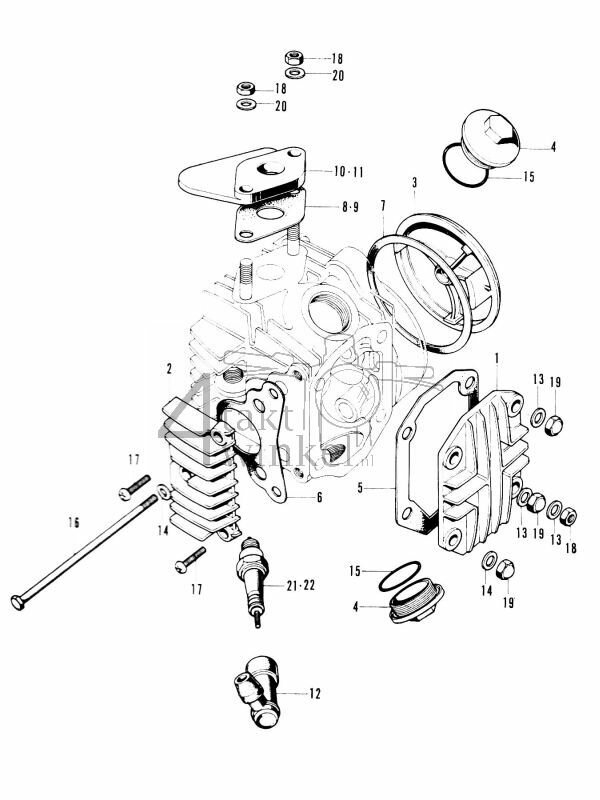

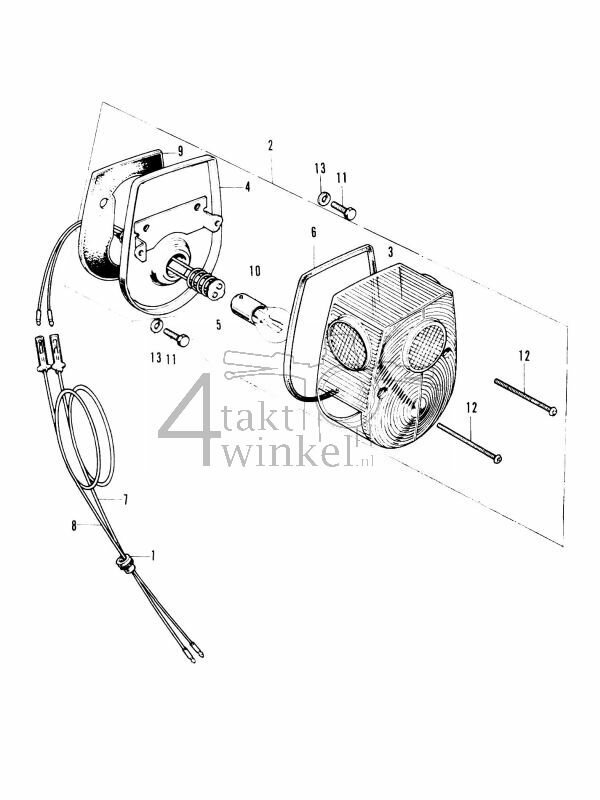

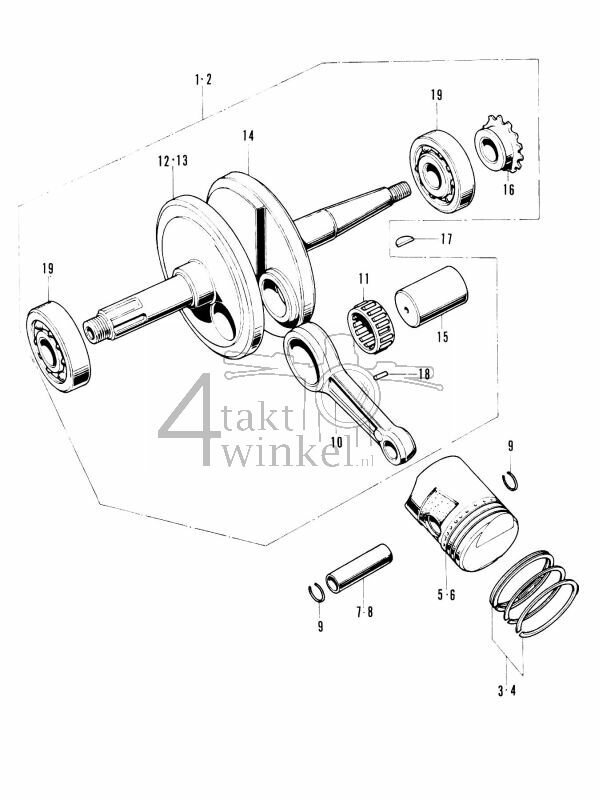

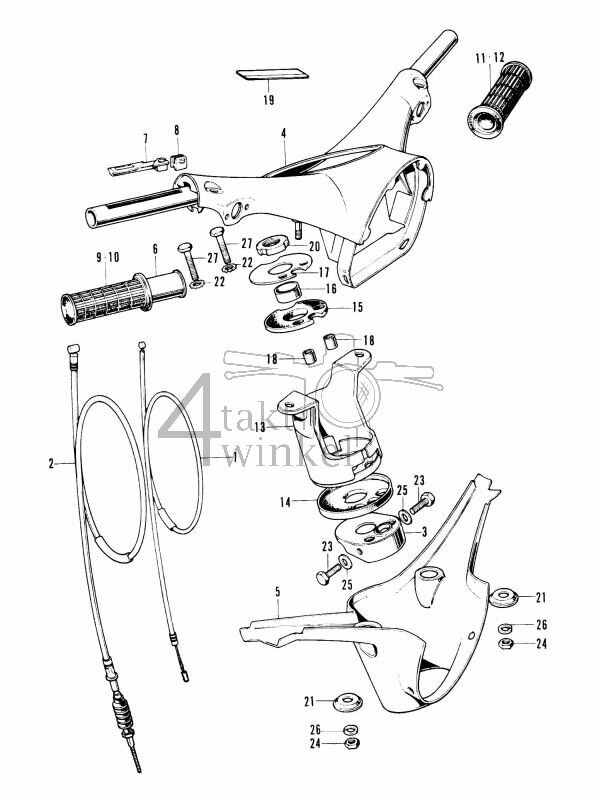

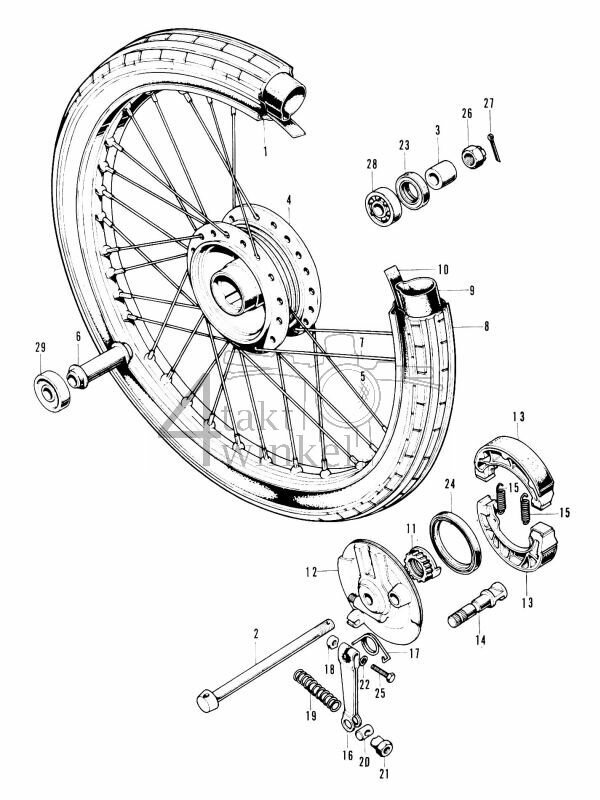

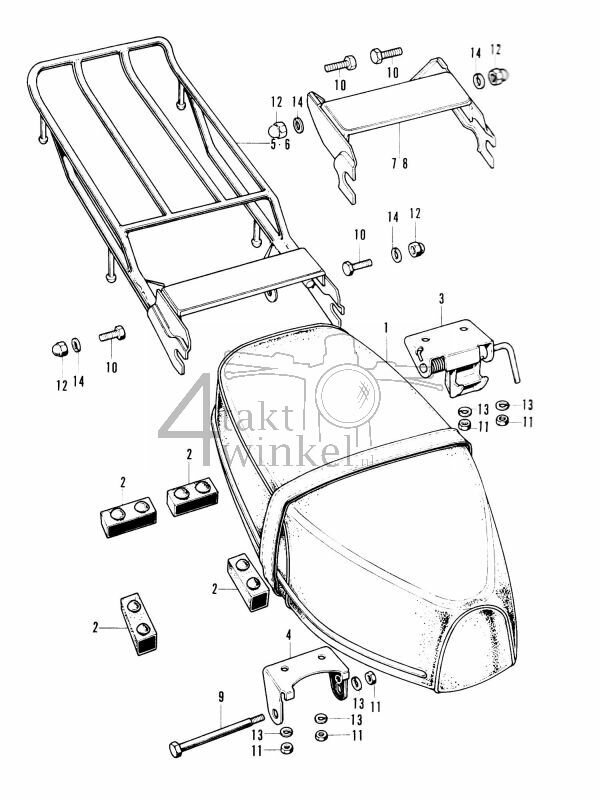

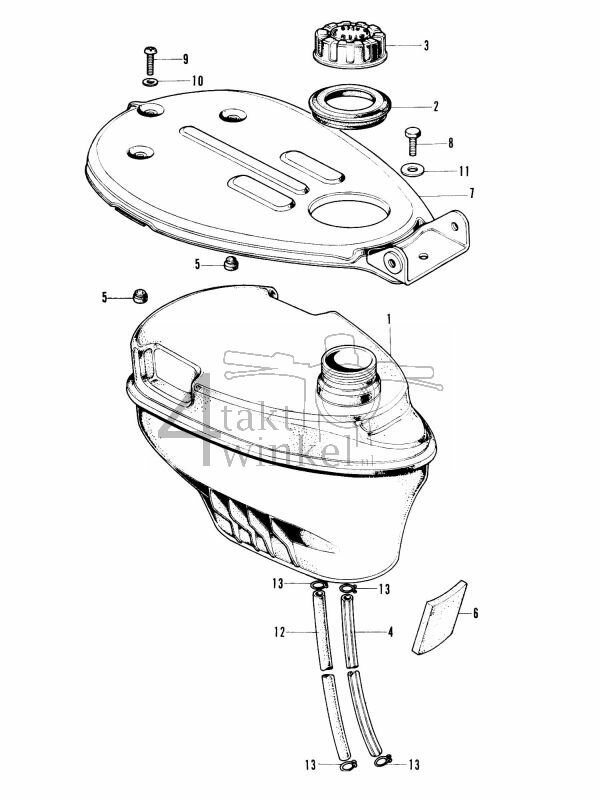

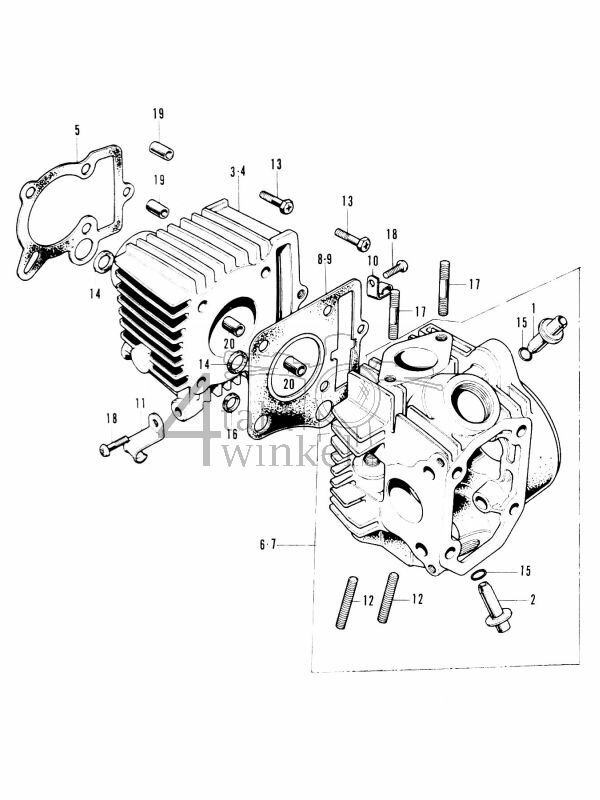

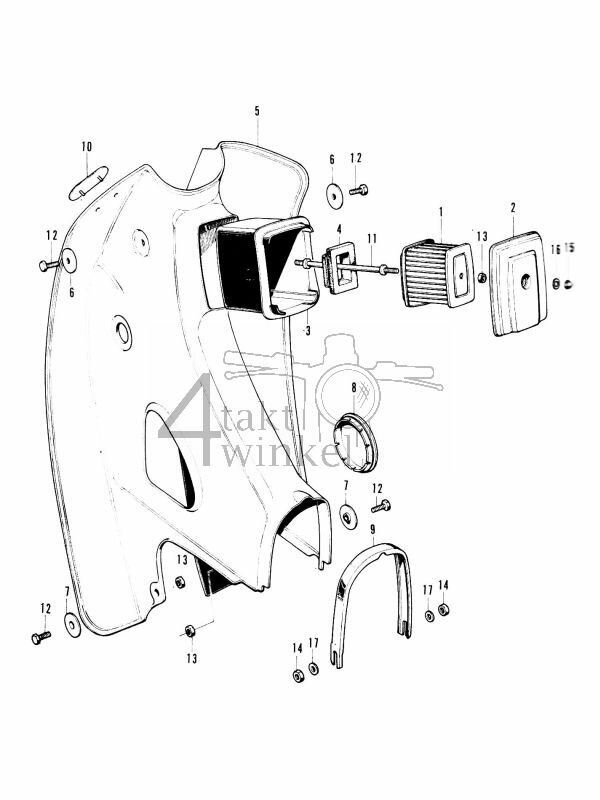

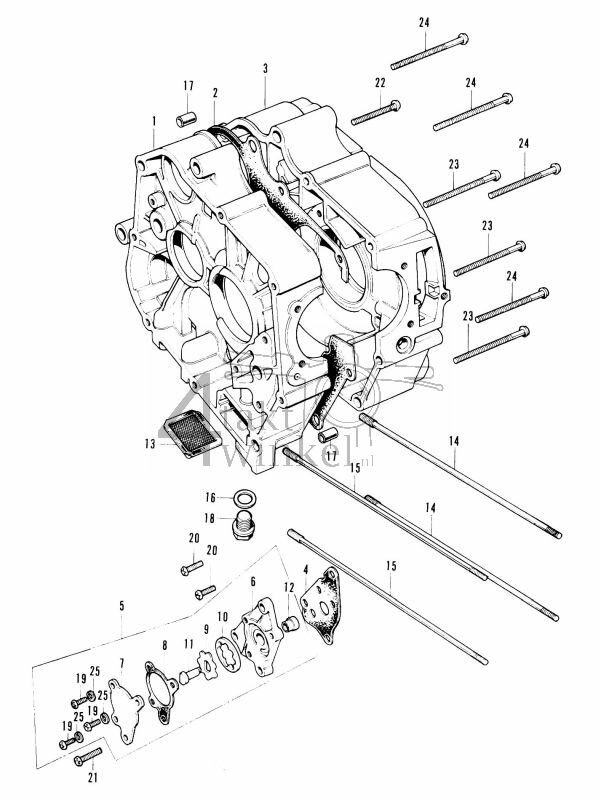

Click on an exploded view drawing to view all parts within that assembly group:

Looking for popular parts and accessories? View the overview for Honda C50 parts ➔

Use these Honda Super Cub C50 K1 technical drawings and exploded views to easily identify assembly sequences and original part numbers. The vintage C50 K1 is characterized by its fuel tank recessed cleanly into the frame, engine cases with cast cooling fins, raised handlebars with a distinct cockpit layout, and a reliable 6-volt points engine. These parts lists help you quickly find all genuine spares, replacements, and rebuild components per assembly group.

Click on an exploded view drawing to view all parts within that assembly group.

Looking for parts for another Honda C50 type, or would you like to browse our selected range of popular products and accessories? Head over to the central overview for Honda C50 parts.

Classic Deluxe Generation: Honda Super Cub C50 K1 (1971 - 1976)

In the early 1970s, the Honda Super Cub C50 K1 inaugurated a new era for the Cub family as a refined successor to earlier C50 variants that featured an external top-mounted fuel tank. With its redesigned pressed-steel chassis and vibrant metallic color palette, this generation achieved tremendous global popularity, winning over countless riders across the Japanese home market as well as in North America under the Passport designation.

Visually, the C50 K1 stands out with its elegant raised handlebar setup housing the distinctively larger speedometer unit, sculpted leg shields, and a fuel tank neatly recessed beneath the saddle inside the frame spine. Mechanically, it relies on the classic 6-volt horizontal four-stroke engine with contact points ignition, easily recognized by the cooling fins cast directly into the crankcase sides for enhanced heat dissipation.

When undertaking an authentic restoration or routine maintenance on an original C50 K1, exact-fit engine and chassis components are vital—particularly regarding 6-volt ignition parts, carburetion, and period-correct body trim. These official exploded view drawings supply comprehensive part numbers, gasket sets, and hardware listings to preserve this early vintage classic in peak operational condition.
