Replica Dax ST50

View the Replica Dax technical drawings and exploded views for exact part numbers and assembly layout of Skyteam, Zhenhua, and Jincheng.

Specifications & features ▾

Replica Dax models are based on the classic Honda Dax chassis. Please note: early Jincheng models and modern Euro4/Euro5 EFI versions feature subtle dimensional differences. Use these parts lists to quickly find genuine replacements, mounting hardware, and overhaul parts by group.

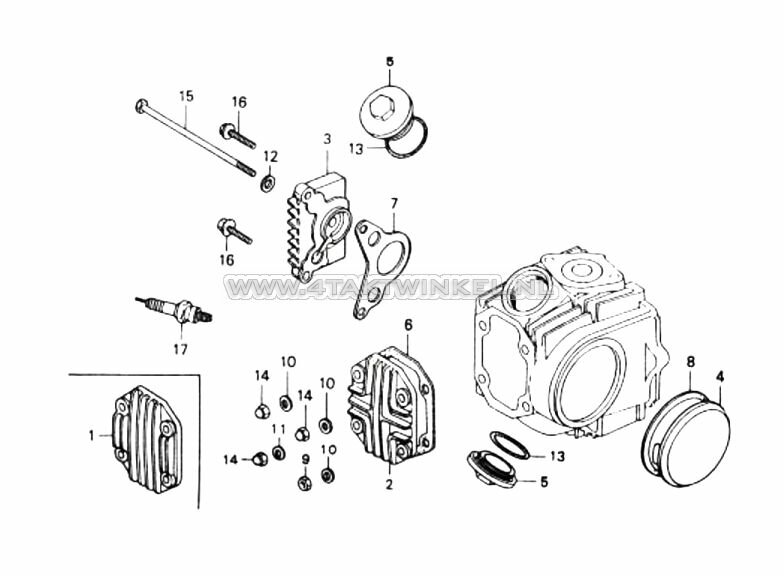

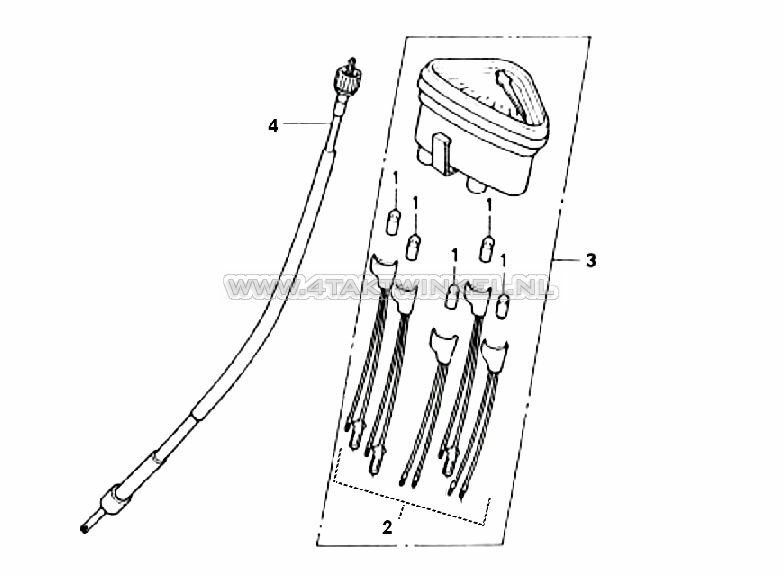

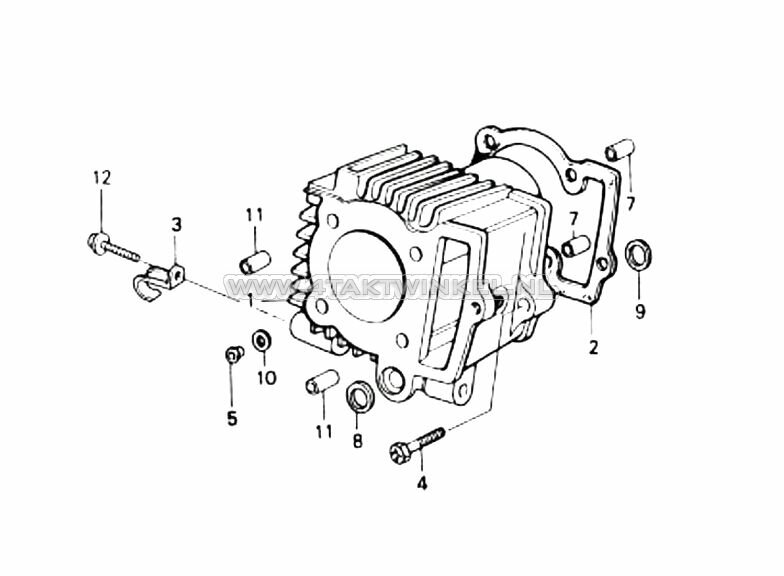

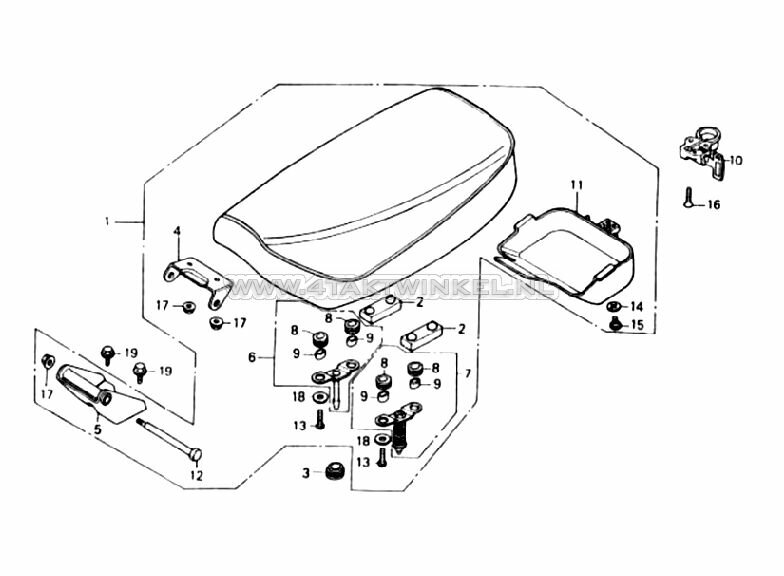

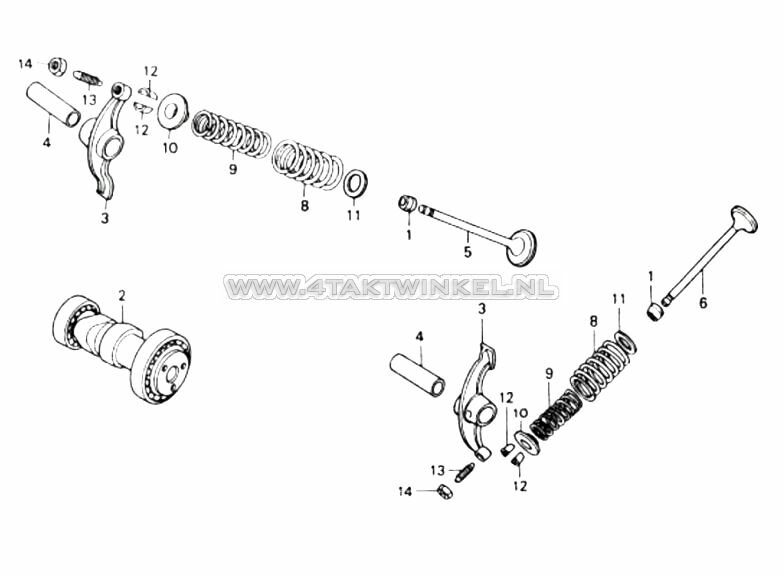

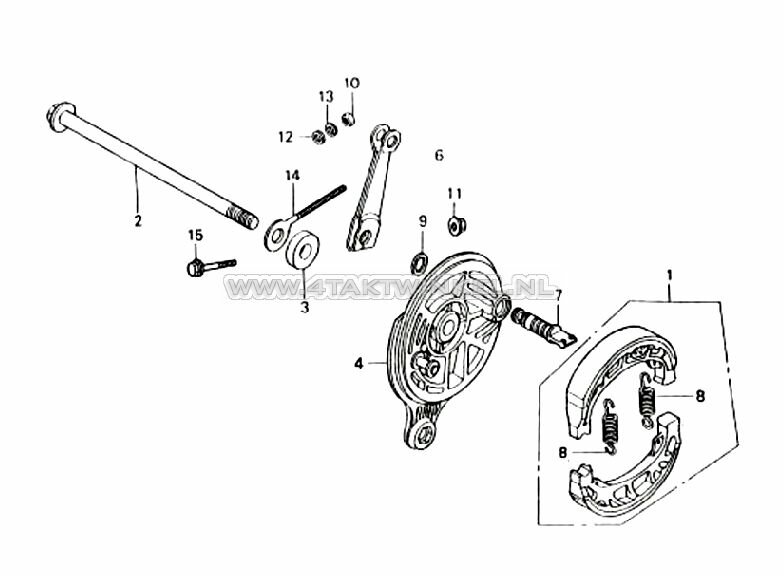

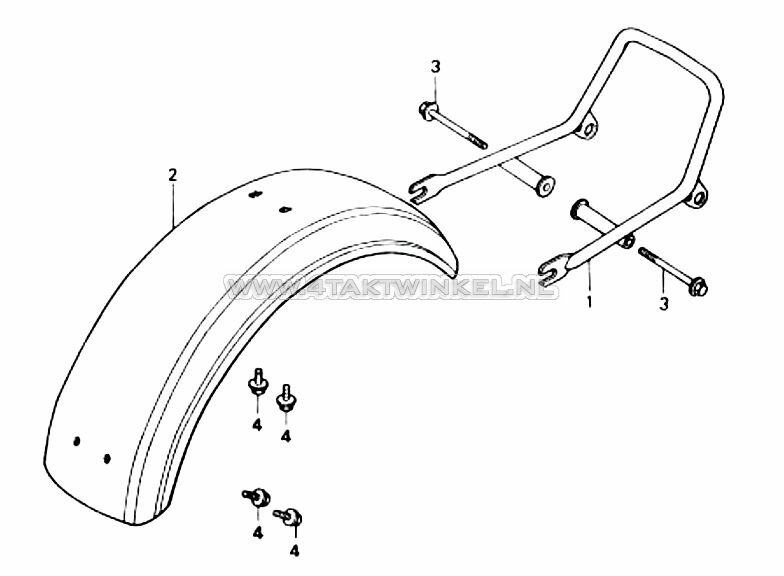

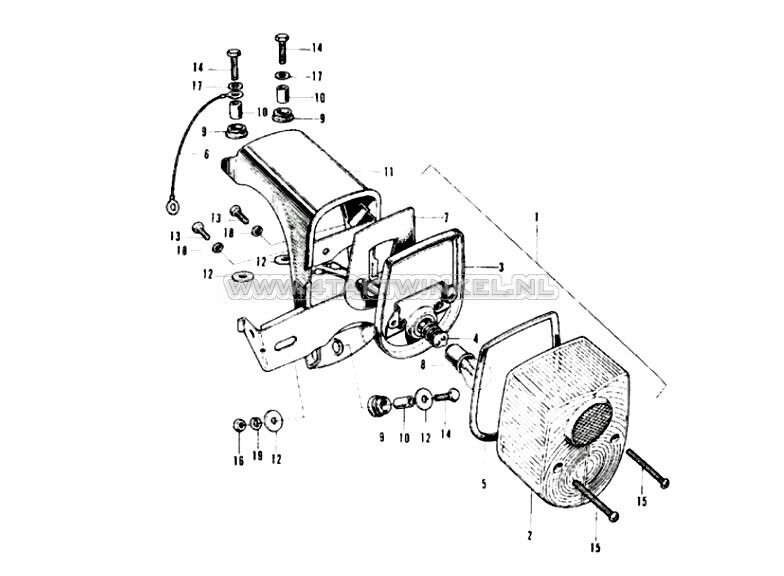

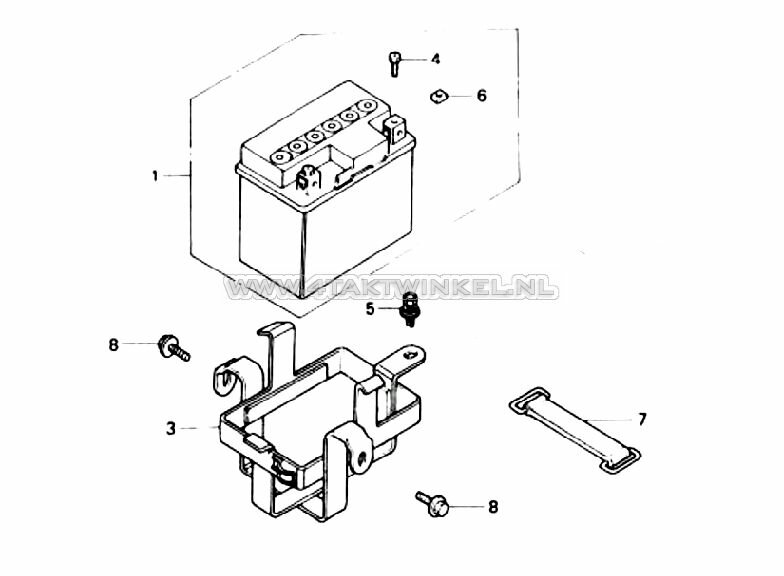

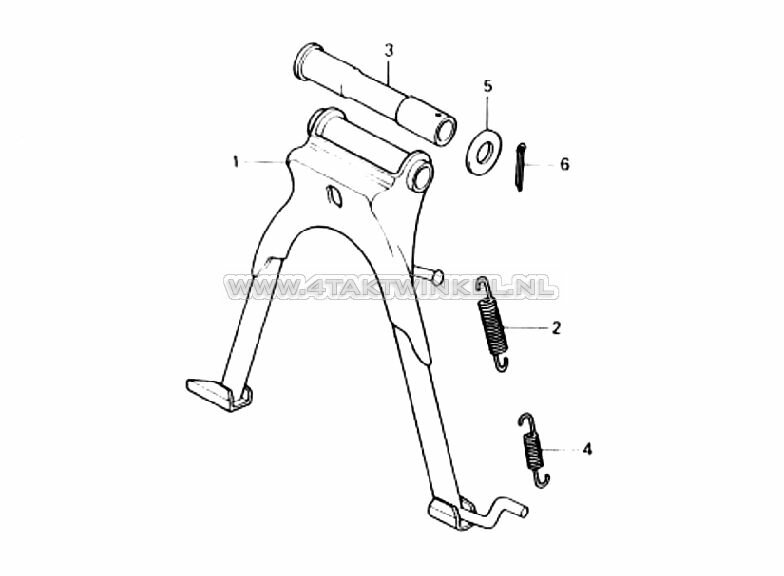

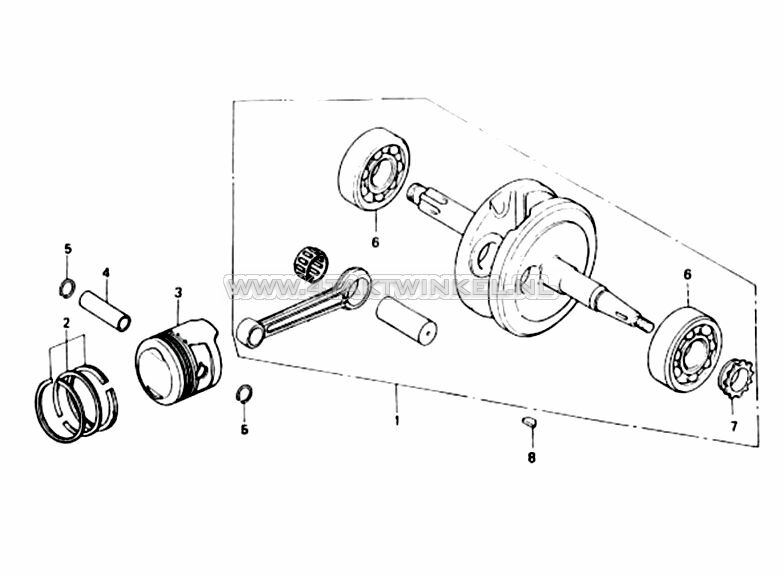

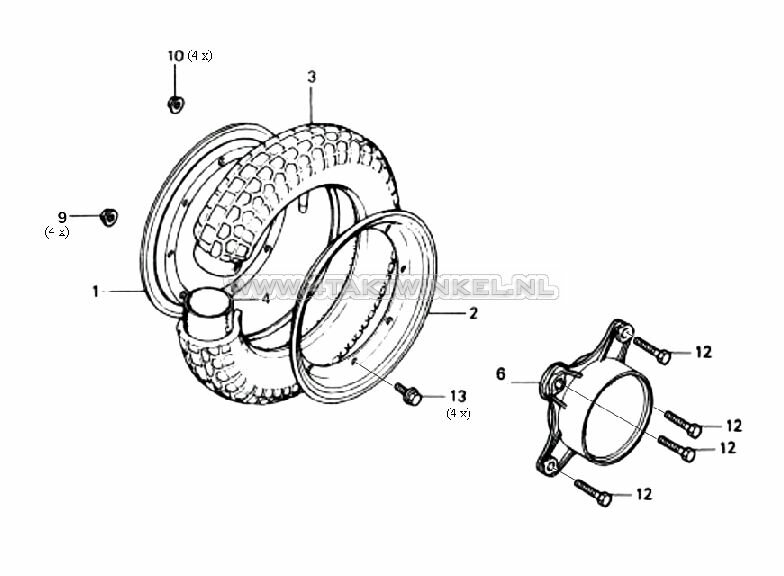

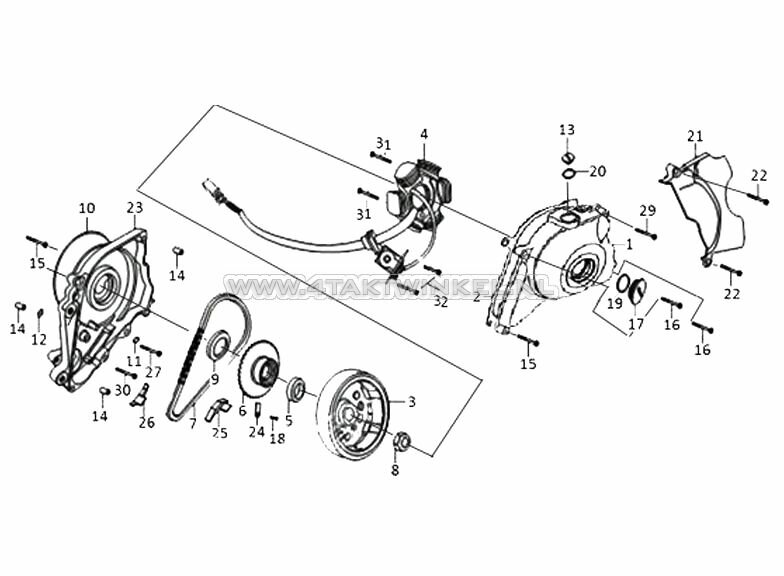

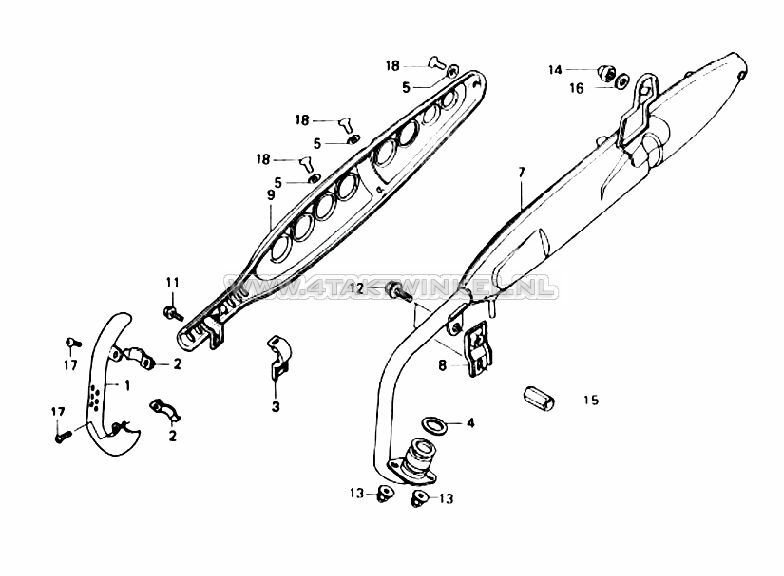

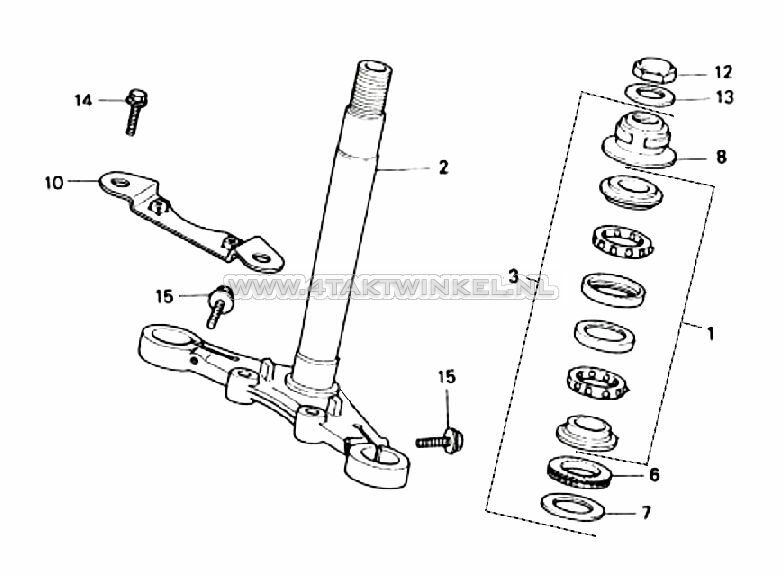

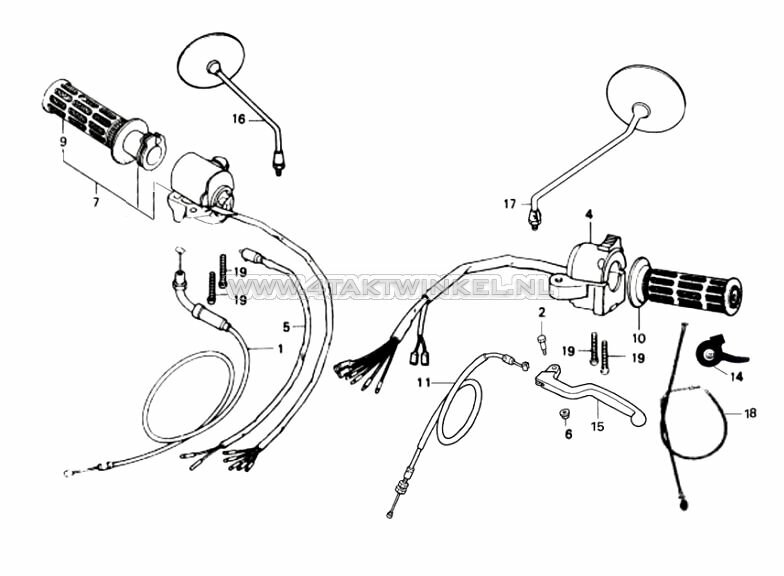

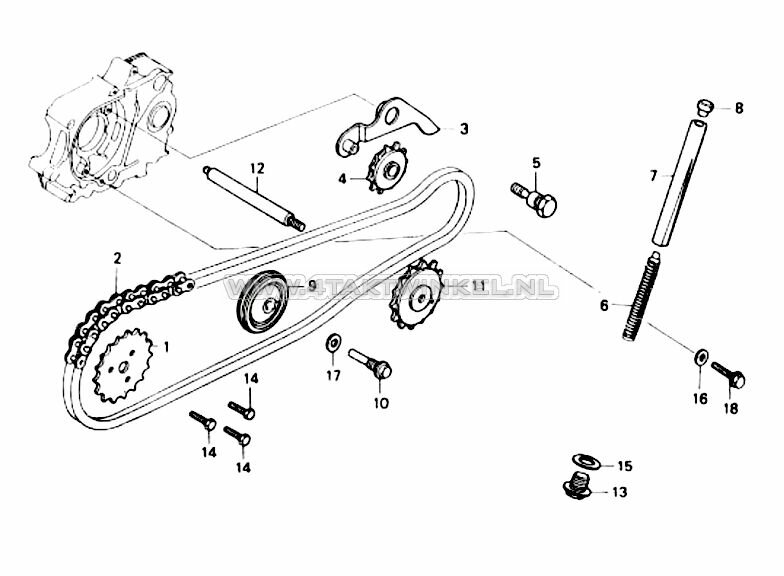

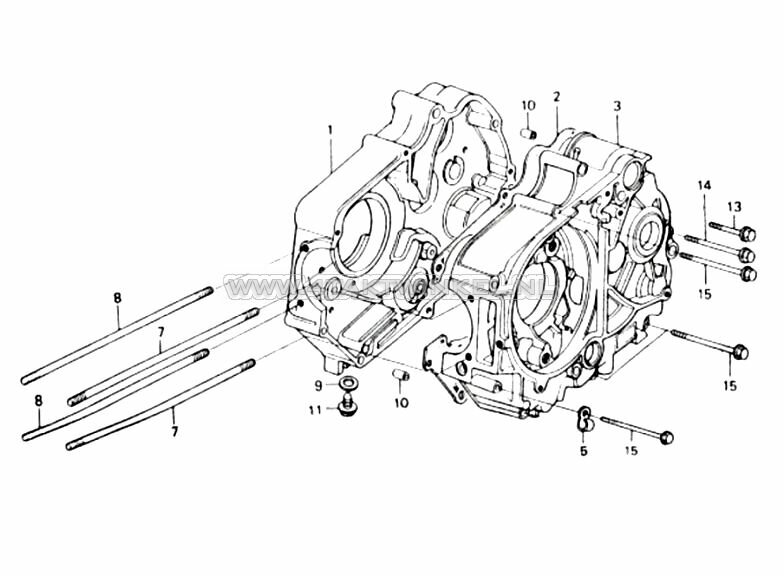

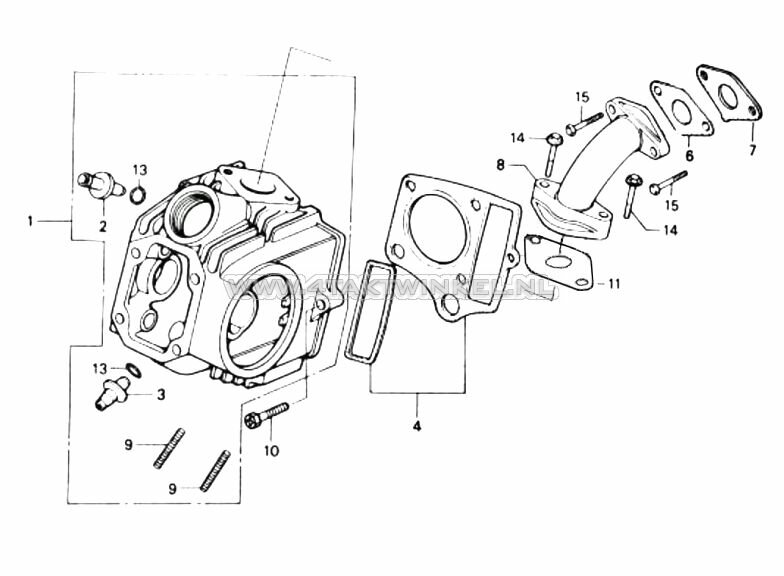

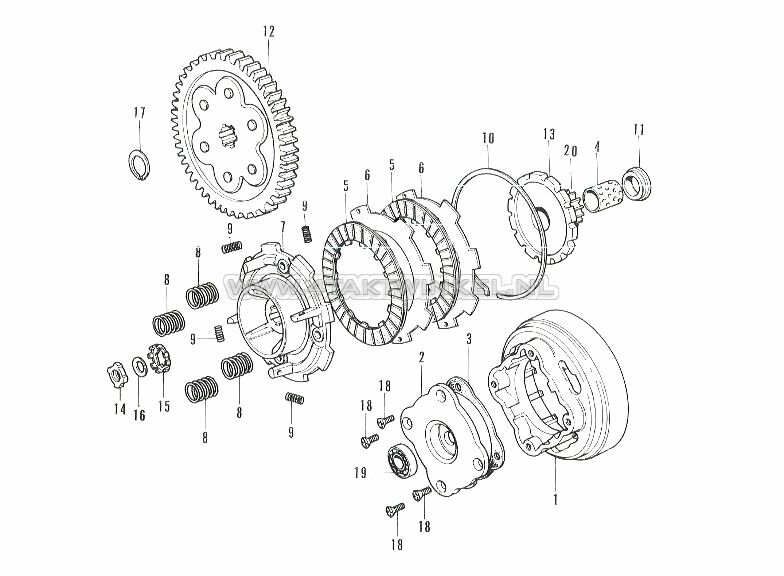

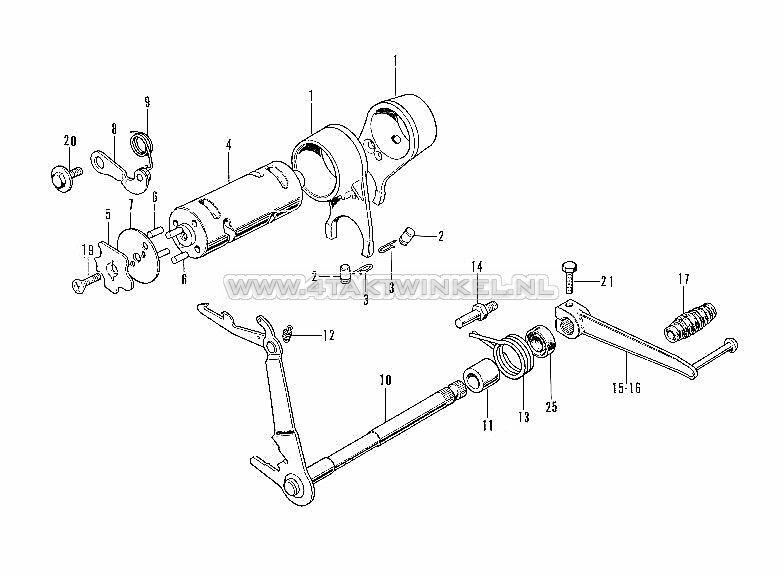

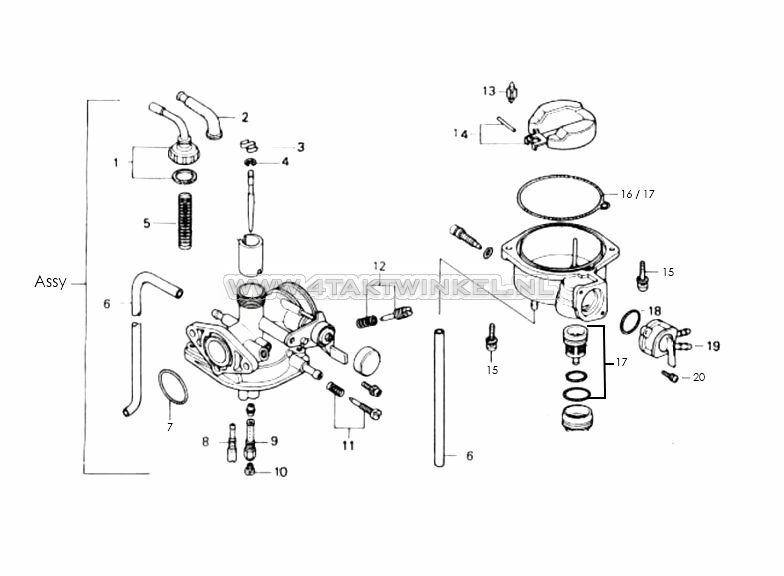

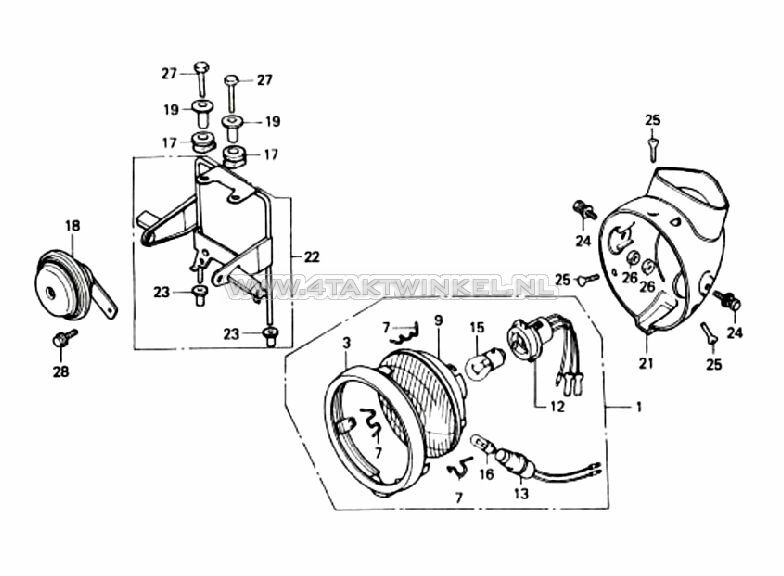

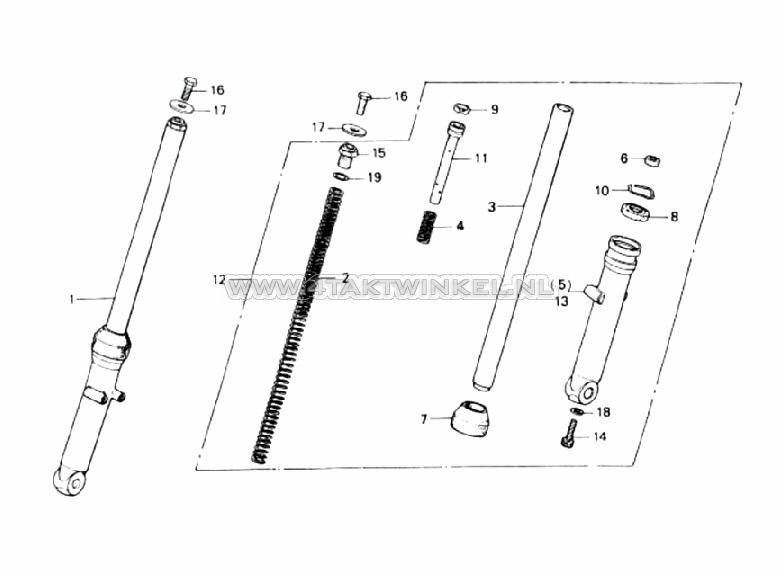

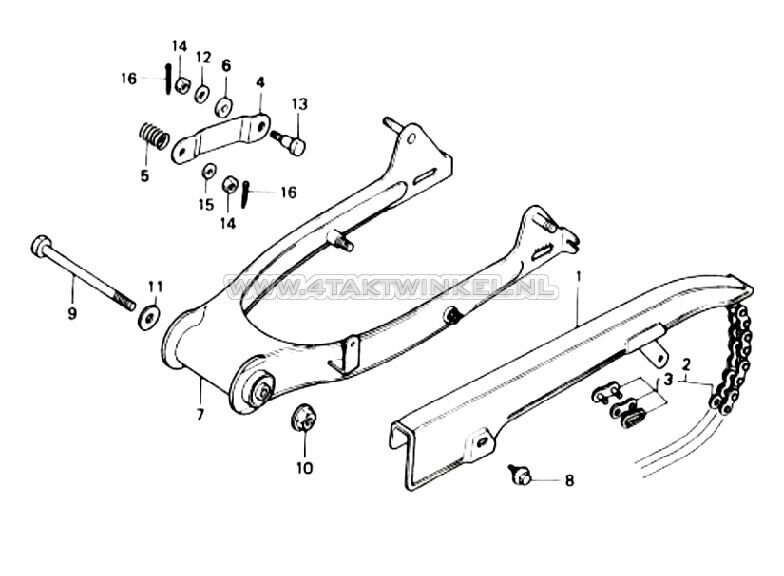

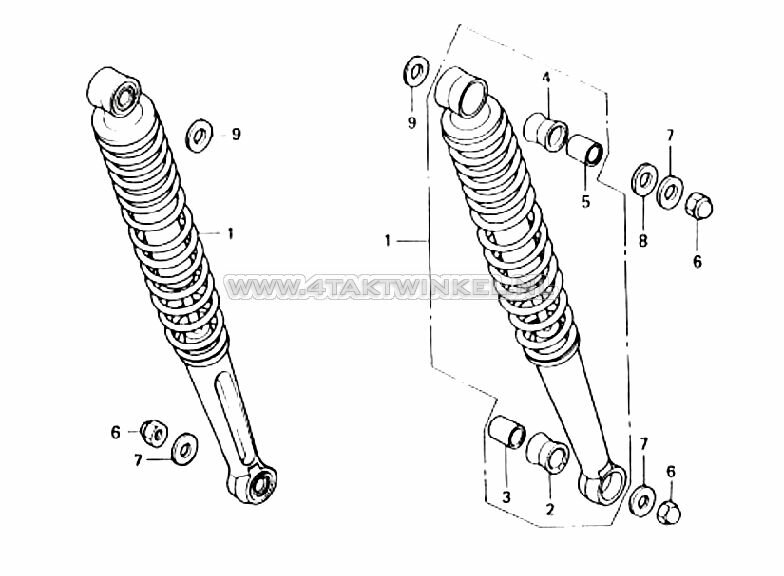

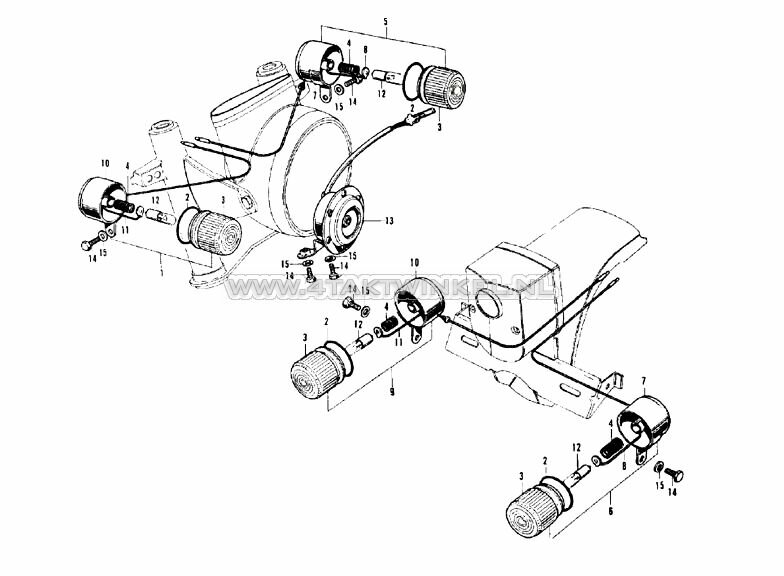

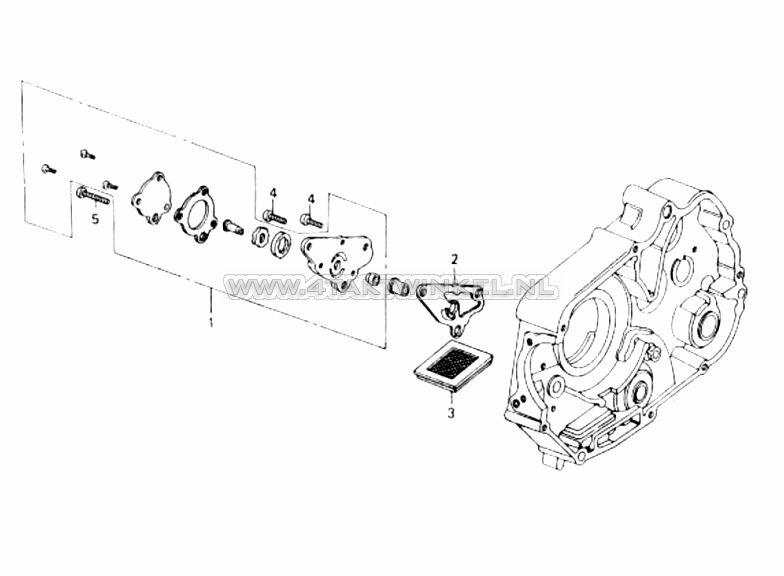

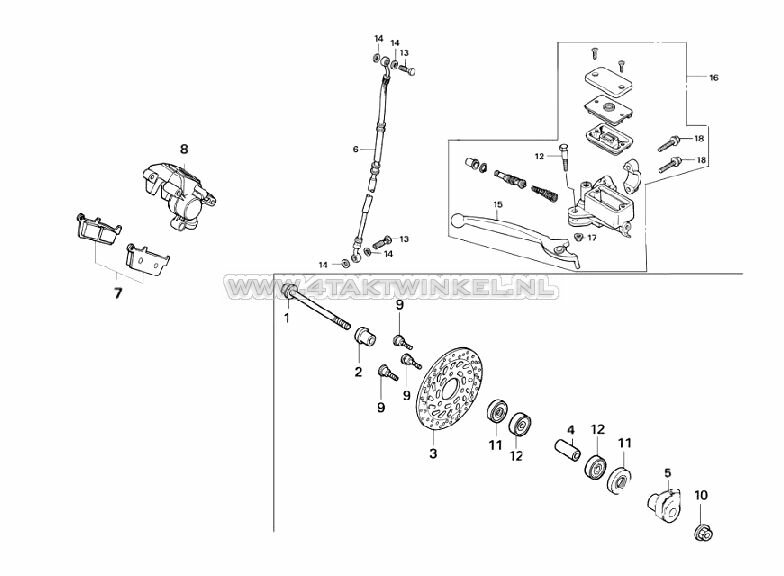

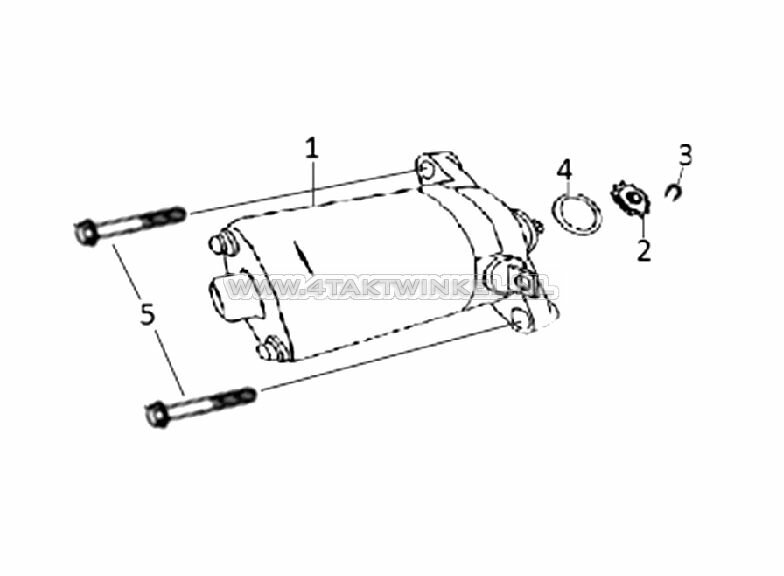

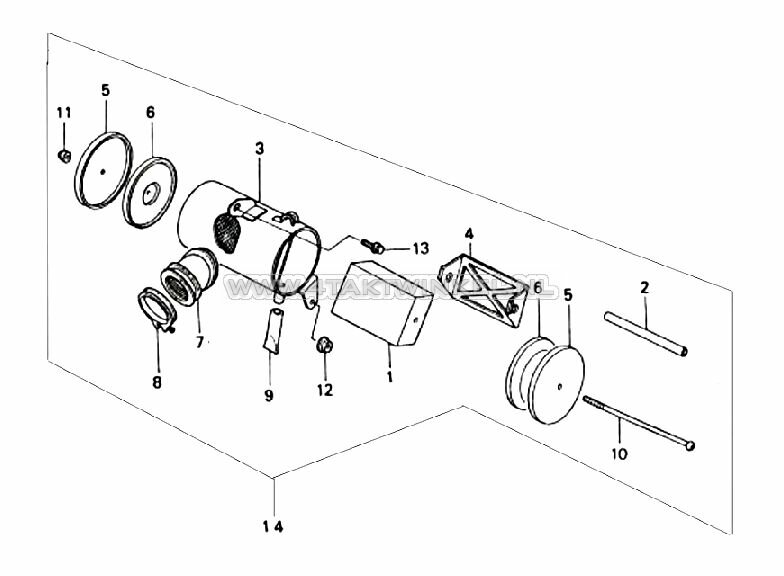

Click on an exploded view drawing to view all parts within that assembly group:

Looking for popular parts and accessories? View the overview for Replica Dax parts ➔

Use these Replica Dax technical drawings and exploded views to easily determine assembly sequences and part numbers for brands such as Skyteam, Zhenhua, and Jincheng. The replica Dax is built around the proven Honda Dax T-bone chassis concept and is available across numerous carburetor and fuel injection configurations. Please note: early Jincheng versions in particular may deviate at specific mounting points. These exploded views allow you to quickly locate replacement parts, bolt kits, wear items, and rebuild components per sub-group.

Click on an exploded view drawing to view all parts within that assembly group.

Looking for parts for a specific brand or want to browse our complete selection of popular upgrades, custom parts, and accessories directly? Head to the central hub for Replica Dax parts.

The modern four-stroke revival: Replica Dax (Skyteam, Zhenhua & Jincheng)

Starting in the late 1990s, manufacturers such as Skyteam, Zhenhua, Jincheng, and Lifan breathed new life into the iconic Dax concept. Built around the proven stamped T-bone chassis, they reintroduced this compact four-stroke machine in configurations ranging from traditional carburetor setups to modern Euro 4 and Euro 5 EFI injection models equipped with front disc brakes.

While sharing fundamental architecture with the vintage original, individual replica brands feature distinct engineering nuances. Early Jincheng editions in particular often utilize specific wheel hubs, unique wiring looms, and different speedometer drives compared to Skyteam or Zhenhua. In addition, the exposed drive chain layout and valve clearances of horizontal four-stroke engines require regular maintenance attention.

Use our comprehensive exploded views to pinpoint every individual bolt, oil seal, bearing, or gasket needed for your machine. Complete routine servicing or major mechanical repairs accurately and keep your replica Dax performing reliably on the road.
